Name: 3 Phase Residential CHP , Residential Cogeneration Units Asynchro 8KW 10KVA
Brand: Chengdu Sevenpower Generating Equipment Co., Ltd.
SKU: SP8N
Availability: InStock

Brand Name:	SevenPower
Model Number:	SP8N
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Chengdu,China

Certification:

Frequency:

50Hz

Phase:

3Phase

Engine Type:

Water Cooled

Alternator Type:

Water Cooled

Certification:

Revolutions:

1500

Highlight:

residential cogeneration units

home combined heat and power

Product Description

3P3W Asynchro 8KW 10KVA CHP With Water Cooled Alternator Grid-on Cogeneration 60HZ Single Phase 10KW CHP 10KW COGEN

Recover heat from 4 sources

- Engine jacket water

- Alternator cooling water

- Exhaust

- Exhaust manifold

Main Specifications

	Model	SP9N
	Model	SP9N
fuel	—	Natural Gas
marks	—	A-synchro CHP
electrical output(KWe)	kVA/kWe	Continuous Power
electrical output(KWe)	kVA/kWe	10/8
thermal output(KWt)	kWt	20.4
electrical efficiency	%	25.6%
thermal efficiency	%	65.3%
overall efficiency	%	90.9%
frequency	Hz	50
voltage	V	400/230
gas inlet pressure	kPa	1-10
Water Flow	m³/h	2
dimension (soundproof type)	mmmmmm	1530750940
net weight	kgs	550
NG consumption	m3/kW.h	0.396
Certificate	—	CE
water-water heat exchanger	—	SWEP
water-exhaust heat exchanger	—	designed by our own factory/made of full stainless steel
ignition system	—	Impco
speed governor	—	Woodward
gas filter	—	Madas
zero regulator	—	Maxitrol
pressure gauge	—	DUNGS
soft start	—	ABB
switch	—	ABB
lambda control	—	Available on request
catalyst converter	—	Available on request
		ComAp
Engine model	—	SP9EW
Engine type	—	4 cylinders,4stroke,16valves,water-coolled
RPM	—	1500
Compression Ratio	—	11
Displacement	—	1.5L
Oil capacity	—	3.9L
Charging voltage	—	12V(DC)
Charging current	—	6A(DC)
Starting system	—	Electic-start
model	—	SP9AW
phase	—	3 phase
insulation system	—	class H
protection	—	IP65
Cooling Type	—	water cooled
max return temp	℃	70

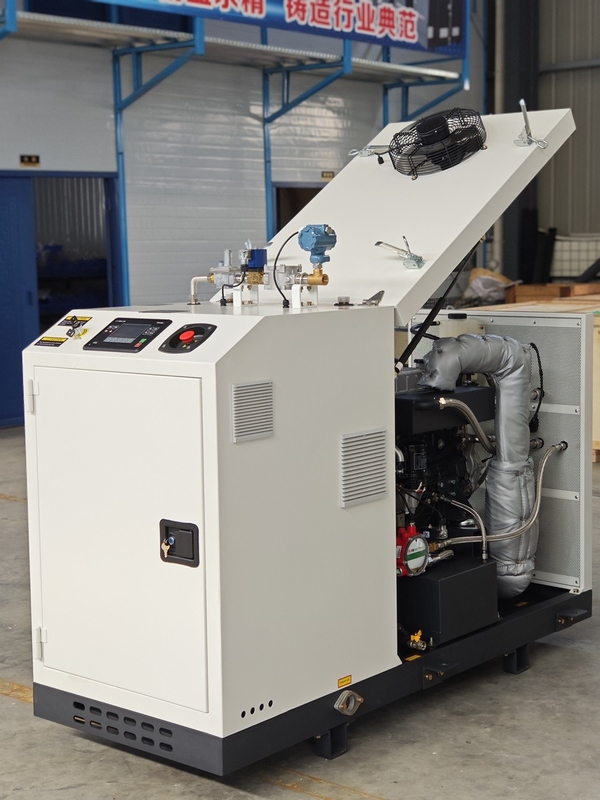

Asynchronous 8kw CHP on Site Picture

3 Phase Residential CHP , Residential Cogeneration Units Asynchro 8KW 10KVA 0

For more specifications about the CHP, please consult with your sales representative.Thanks.
