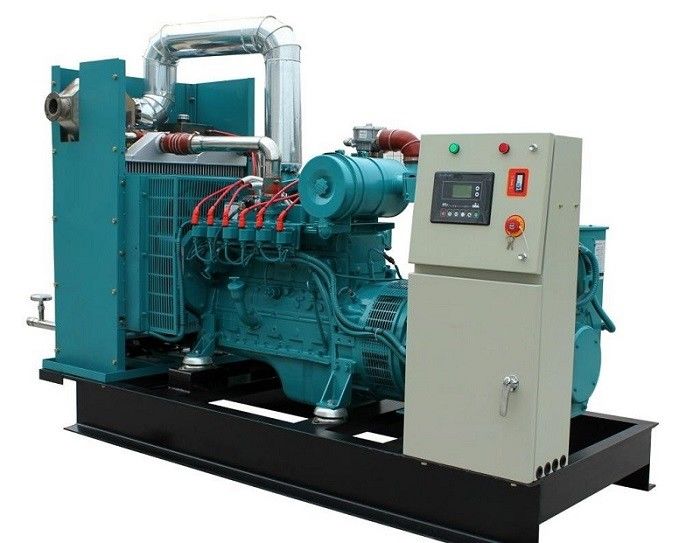

Continuous 100KW 400V Natural Gas Genset With Water Cooling Converted CUMMINS Engine
| Place of Origin | Chengdu,China |
|---|---|
| Brand Name | SevenPower |
| Certification | CE |
| Model Number | SP100N |
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Delivery Time | 25days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 50Hz, 60Hz Is Available On Request | Fuel | Natural Gas, Biogas Is Available On Request |
|---|---|---|---|
| Electrical Output | 100kw | Color | White Or Black, Other Colors Is Avaible On Request |
| Emissions | Customised, Available On Request | Sounproof Canopy | With Or Without |
| High Light | natural gas genset,quiet natural gas generator |
||
Product Description
3 Phase 400V Continuous 100KW Natural Gas Generator Set With Water Cooling Converted CUMMINS Engine With ATS
OEM Service of SevenPower gas generator set:
1. Unique design and manufacture of generator set according to customers’ requirement.
2. Customer logo printing or painting on the genset.
3. Installation and operation manual heading according to customer requirement.
4. Full after-service support
Production Service
-Keep customers posted on the progress of production.
-Systematical and strict testing before delivering to customers
-Testing
- Including 0%,25%,50%, 75%, 100%, 110% load
- Emergency stop
- All protections(high temperature, low oil pressure, over speed, over load, over frequency and phase failure etc.)
- Electrical and thermal power output
- Synchronization
Converted CUMMINS Diesel Engine Into Gas Engine
Main Characters
Natural gas CHP SP100N/24hours Continuous Electrical Output 100kw
| Model | SP100N | |
| fuel | — | Natural Gas |
| marks | — | Synchro CHP |
| electrical output(KWe) | kVA/kWe | Continuous Power |
| 125/100 | ||
| frequency | Hz | 50 |
| voltage | V | 400/230 |
| gas inlet pressure | kPa | 3-5 |
| dimension (soundproof type) | mm*mm*mm | 2600*1550*1650 |
| net weight | kg | 2700 |
| NG consumption | m3/kW.h | 0.296 |
| db(A)@7m | — | 58 |
| Certificate | — | CE |
| ignition system | — | Impco |
| speed governor | — | Woodward |
| mixer | — | Venturi type |
| gas filter | — | Madas |
| zero regulator | — | Kromschroeder |
| solenoid valve | — | Kromschroeder |
| gas pressure gauge | — | Dungs |
| Lambda auto control | — | Available on request with extral cost |
| catalyst converter | — | Available on request with extral cost |
| MCB | — | ABB |
| GCB | — | ABB |
| Controller | ComAp | |
| Engine model | — | SP-6CTA |
| Engine type | — | 6 cylinders,4stroke,water-coolled |
| RPM | — | 1500 |
| Compression Ratio | — | 10.5 |
| Displacement | — | 8.3L |
| Oil capacity | — | 19L |
| Charging voltage | — | 24V(DC) |
| Charging current | — | 5A(DC) |
| Starting system | — | Electic-start |
| Alternator model | — | Meccalte |
| phase | — | 3 phase 4 wires |
| insulation system | — | class H |
| protection | — | IP23 |
| Cooling Type | — | air cooled |
Optional at
- Leroy Somer or Faraday Or Stamford alternator
- ComAp or Deepsea or SmartGen controller
- Off-grid or Mains parallel.
- Gensets in parallel
- Emissions(NOx and CO)
- Soundproof canopy / Weatherproof Canopy / Vehicle design
For more information about each Genset, please consult with your sales representative.Thanks.
