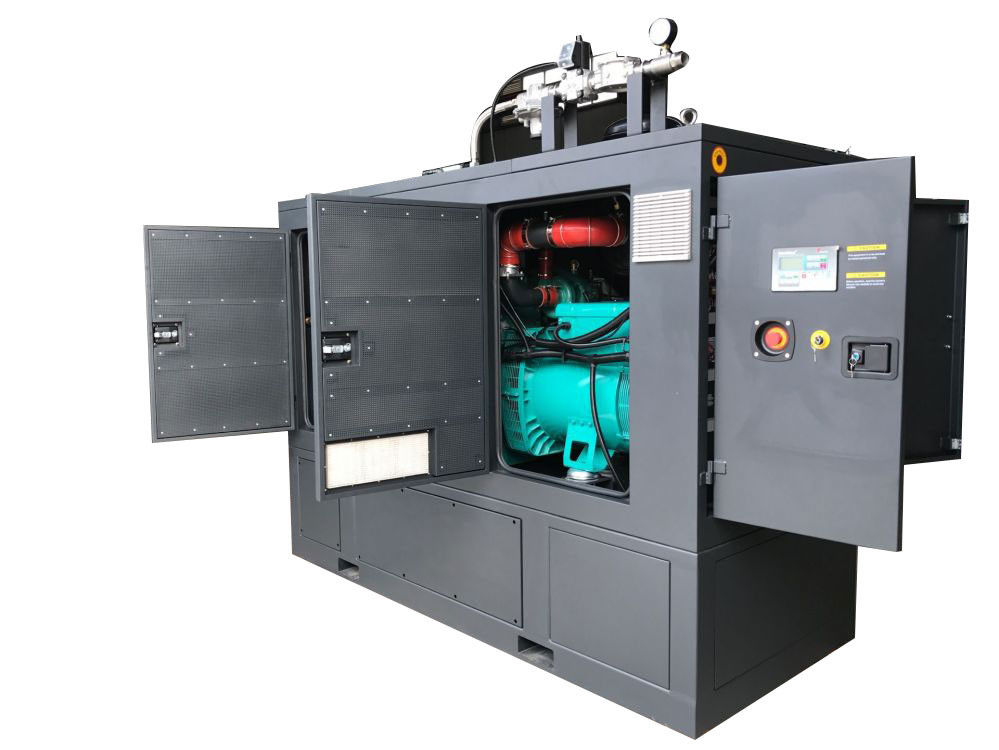

Continuous 100KW Natural Gas CHP , Synchro CHP Cogeneration Systems Super Silent Running

Brand Name: SevenPower
Model Number: SP100N
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Chengdu,China
Certification:
CE
Frequency:
50Hz, 60Hz Is Available On Request
Fuel:
Natural Gas, Biogas Is Available On Request
Electrical Output:
100kw
Color:
White Or Black, Other Colors Is Avaible On Request
Emissions:
Customised, Available On Request
Sounproof Canopy:
With Or Without
Highlight:

natural gas combined heat and power

,

natural gas cogen

,

Continuous 100KW Natural Gas CHP

Product Description

Continuous 100KW Natural Gas CHP , Synchro CHP Cogeneration Systems Super Silent Running

Production Service
-Keep customers posted on the progress of production.
-Systematical and strict shop testing before delivering to customers
-Testing

  • Including 0%,25%,50%, 75%, 100%, 110% load
  • Emergency stop
  • All protections(high temperature, low oil pressure, over speed, over load, over frequency and phase failure etc.)
  • Electrical and thermal power output
  • Synchronization

 Natural gas CHP SP100N/24hours Continuous Electrical Output 100kw

-Powered by converted CUMMINS engine

-6cylinders water-cooled type internal combustion engine

-RPM1500,longer service life

-Recover heat from engine body and exhaust manifold and exhaust

-Integrated control cabinet

-Safe gas train

-Advanced gas engine control system, ignition system, speed control system, air/fuel ratio control system

-All necessary engine protections, oil pressure, water temperature, over current, over voltage, overload, engine speed, frequency protection, battery voltage

-Easy control system, all information easily read from the controller screen, power output,voltage,current,power factor, engine speed,oil pressure,coolant temperature,battery voltage,run hours,start numbers,alarms,historical records


Main Characters

  Model SP110N
fuel — Natural Gas
marks — Synchro CHP
electrical output(KWe) kVA/kWe Continuous Power
125/100
thermal output(KWe) kWt 171
electrical efficiency % 30.8%
thermal efficiency % 52.7%
overall efficiency % 83.5%
frequency Hz 50
voltage V 400/230
gas inlet pressure kPa 3-5
dimension (soundproof type) mm*mm*mm 2600*1550*1650
net weight kg 2700
NG consumption m3/kW.h 0.296
db(A)@7m — 58
Certificate — CE
water-water heat exchanger — SWEP
water-exhaust heat exchanger — designed by our own factory/made of full stainless steel
ignition system — Impco
speed governor — Woodward
mixer — Venturi type
gas filter — Madas
zero regulator — Kromschroeder
solenoid valve — Kromschroeder
gas pressure gauge — Dungs
Lambda auto control — Available on request with extral cost
catalyst converter — Available on request with extral cost
MCB — ABB
GCB — ABB
Controller   ComAp
Engine model — SP-6CTA
Engine type — 6 cylinders,4stroke,water-coolled
RPM — 1500
Compression Ratio — 10.5
Displacement — 8.3L
Oil capacity — 19L
Charging voltage — 24V(DC)
Charging current — 5A(DC)
Starting system — Electic-start
Alternator model — Meccalte
phase — 3 phase 4 wires
insulation system — class H
protection — IP23
Cooling Type — air cooled


Optional at

  • Leroy Somer or Faraday Or Stamford alternator
  • ComAp or Deepsea or SmartGen controller
  • Off-grid or Mains parallel.
  • CHPs in parallel
  • Emissions(NOx and CO)

Continuous 100KW Natural Gas CHP , Synchro CHP Cogeneration Systems Super Silent Running 0

                                             3 Different Applications
 Continuous 100KW Natural Gas CHP , Synchro CHP Cogeneration Systems Super Silent Running 1























Picture for reference

Continuous 100KW Natural Gas CHP , Synchro CHP Cogeneration Systems Super Silent Running 2



SevenPower 100KW Natural Gas CHP On Site Picture(Europe)
Continuous 100KW Natural Gas CHP , Synchro CHP Cogeneration Systems Super Silent Running 3

Continuous 100KW Natural Gas CHP , Synchro CHP Cogeneration Systems Super Silent Running 4

For more information about each CHP, please consult with your sales representative.Thanks.
