200KW 250KVA 50Hz Natural Gas Cogen High Overall Efficiency With Auto Control

Brand Name: SevenPower
Model Number: SP200N
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Chengdu,China
Certification:
CE
Fuel:
Natural Gas, Biogas Is Available On Request
Frequency:
50Hz, 60Hz Is Available On Request
Electrical Output:
200kw
Engine Cooling:
Water-cooled Type
Alternator Cooling:
Air-cooled Type
Heat Recovery:
Both Engine And Exhaust
Emissions:
Available On Request
Sounproof Canopy:
With Or Without
Color:
White Or Black, Other Colors Please Consult With The Sales
Highlight:

natural gas cogeneration

,

natural gas cogen

,

50Hz Natural Gas Cogen

Product Description

200KW 250KVA 50Hz Natural Gas Cogen High Overall Efficiency With Auto Control



Pre-sale Service



- Provide specifications consultation, customized design proposal.

- Welcome to visit our factory for inspection.

- Check and see the products running

- Train operators





Production

- Keep customers posted on the progress of production.

- Systematical and strict testing before delivering to customers

- Testing

  • Including 0%,25%,50%, 75%, 100%, 110% load
  • Emergency stop
  • All protections(high temperature, low oil pressure, over speed, over load, over frequency and phase failure etc.)
  • Electrical and thermal power output
  • Synchronization

Electrical Power: 200kw



CHP Main Specifications



Certification: CE

Frequency: 50Hz

Voltage: 400/230V

Gas Inlet: 3-5Kpa

Electrical efficiency: 34.9%

Thermal efficiency: 49.4%

Overall efficiency: 84.3%

Alternator: Meccalte

Controller: ComAp,Deepsea and SmartGen is available on request.

With auto Lambda auto control.

NOx and CO below 500mg/Nm3,Optional.

Optional at Off-grid and Mains parallel.



Alternator Main Specifications

200KW 250KVA 50Hz Natural Gas Cogen High Overall Efficiency With Auto Control 0



Why SevenPower?



- Environmentally friendly design

- Long time research and development and testing for high reliability
- Comprehensive heat insulation to minimize heat losses

- Water-to-water heat exchanger/SWEP, self-developed exhaust heat exchanger which is made of full stainless steel #316 instead of universal carbon steel which get rusty easily.

- CHP inner pipeline is made of full stainless steel.

- Maximum lower the noise level
- Maintenance friendly thanks to easy access
- Long service intervals
- Suitable for mains parallelling

- CE approved

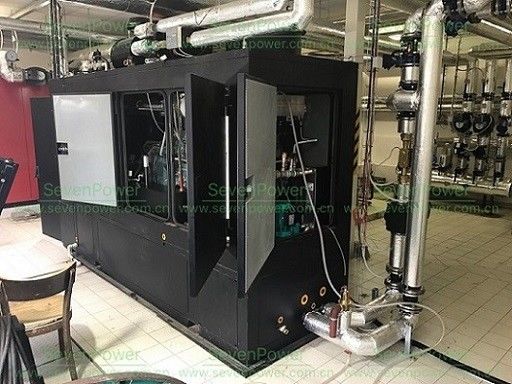

SevenPower Natural Gas CHP 200KW On Site Picture(Europe)

200KW 250KVA 50Hz Natural Gas Cogen High Overall Efficiency With Auto Control 1





For more information about the 200KW CHP, please consult with your sales representative.Thanks.



Our Packing

200KW 250KVA 50Hz Natural Gas Cogen High Overall Efficiency With Auto Control 2

Our Hannover Exhibition

200KW 250KVA 50Hz Natural Gas Cogen High Overall Efficiency With Auto Control 3

Our Showroom In Germany

200KW 250KVA 50Hz Natural Gas Cogen High Overall Efficiency With Auto Control 4



Our Customers' Visiting

200KW 250KVA 50Hz Natural Gas Cogen High Overall Efficiency With Auto Control 5
