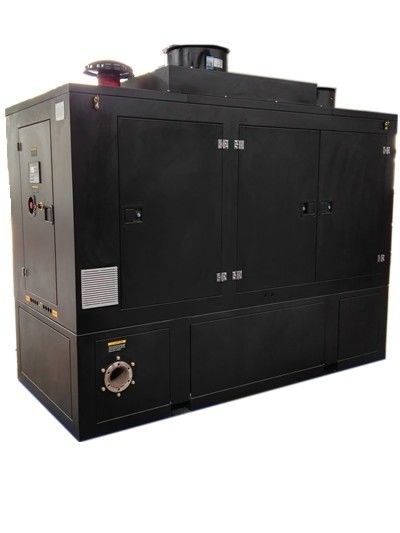

100KW 125KVA Biogas CHP , Renewable Energy Combined Heat And Power Unit
  • Name

100KW 125KVA Biogas CHP , Renewable Energy Combined Heat And Power Unit

Brand Name: SevenPower
Model Number: SP100B
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Chengdu,China
Certification:
CE
Fuel:
Biogas
CH4:
>=55%
Frequency:
50Hz,60Hz Is Available On Request
RPM:
1500
Start:
Electrical Auto Start
Engine Type:
Water-cooled
Overhauling Time:
25000hours
Altitude:
<1000meters
Highlight:

biogas cogeneration

,

combined heat and power unit

Product Description

Auto Start 100KW 125KVA 3 Phase Biogas CHP 400/230V Renewable Energy Green Energy CE Approved

Biogas is well known as clean energy, biogas CHP solved the problem of livestock waste, reduce greenhouse gas emissions, generate both electricity and heat, with high overall efficiency to achieve maximum utilization of resources.



CONSTITUENT PARTS





SevenPower standard CHP units all adopt closed loop circulation, liquid - liquid heat exchange cooling method.The closed loop cooling system consists of the following parts:

- expansion water pot

- water pump

- engine internal water channel

- thermostat

- liquid - liquid heat exchanger

- corrugated metal pipes

- water cooled exhaust pipe




CHP Main Specifications

  Model SP110B
fuel — Biogas
marks — Synchro CHP
electrical output(KWe) kVA/kWe Continuous Power
125/100
thermal output(KWe) kWt 175
electrical efficiency % 29.7%
thermal efficiency % 52%
overall efficiency % 81.7%
frequency Hz 50
voltage V 400/230
gas inlet pressure kPa 1-10
dimension (soundproof type) mm*mm*mm 2600*1550*1650
net weight kg 3000
Biogas consumption m3/kW.h 0.47
Biogas consumption for one hours m3/h 47
db(A)@7m — 58
Certificate — CE
water-water heat exchanger — SWEP
water-exhaust heat exchanger — made of stainless steel
ignition system — Impco
speed governor — Woodward
gas filter — Madas
zero regulator — Kromschroeder
MCB — ABB
GCB — ABB
Controller   ComAp
Engine model — SP-6LTA
Engine type — 6 cylinders,4stroke,water-coolled
RPM — 1500
Compression Ratio — 10.5
Displacement — 8.9L
Oil capacity — 27L
Charging voltage — 24V(DC)
Charging current — 5A(DC)
Starting system — Electic-start
Alternator model — Meccalte
phase — 3 phase 4 wires
insulation system — class H
protection — IP23
Cooling Type — air cooled


Characters

Environmentally friendly design.
Long time R&D and testing ensure high reliability.
Comprehensive heat insulation to minimize heat loss.
CHP inner pipelines are made of full stainless steel material.
Maximum lower the noise level.
Maintenance friendly thanks to easy access.

Biogas Requirements

Composition Content
CH4 ≥55%
fluctuations value of biogas in pipeline <0.2Kpa
hydrogen <10%
sulfide, including hydrogen sulphide <200mg/m3
chlorine fluorine compounds,mainly chlorofluoromethane <15mg/m3
silicium <0.7mg/m3
ammonia <15mg/m3
liquid oil and hydrocarbons <50mg/m3
particles <5μm Impurity content<30mg/m3



Biogas CHP On-site Picture(Installed In Year 2013)

100KW 125KVA Biogas CHP , Renewable Energy Combined Heat And Power Unit 0
100KW 125KVA Biogas CHP , Renewable Energy Combined Heat And Power Unit 1

For more information about each CHP, please consult with your sales representative.Thanks.



More Information About Our Factory

Our Packing

100KW 125KVA Biogas CHP , Renewable Energy Combined Heat And Power Unit 2

Our Hannover Exhibition

100KW 125KVA Biogas CHP , Renewable Energy Combined Heat And Power Unit 3

Our Showroom In Germany

100KW 125KVA Biogas CHP , Renewable Energy Combined Heat And Power Unit 4



Our Customers' Visiting

100KW 125KVA Biogas CHP , Renewable Energy Combined Heat And Power Unit 5
