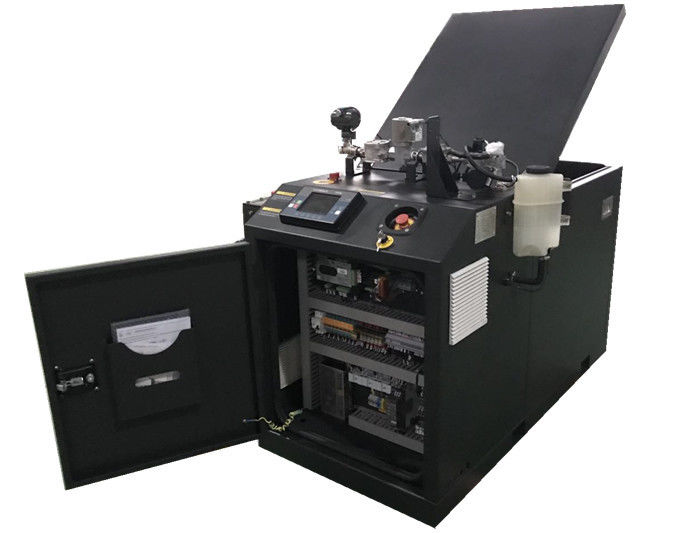

Asynchronous Residential CHP , Domestic Cogeneration Systems 15KW 20KVA With 4Y Engine
| Place of Origin | Chengdu,China |
|---|---|
| Brand Name | SevenPower |
| Certification | CE |
| Model Number | SP15N |
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Delivery Time | 25days |
| Payment Terms | L/C, T/T |
Product Details
| Engine Type | Water-cooled | RPM | 1500 |
|---|---|---|---|
| Alternator Type | Water-cooled | Frequency | 50Hz,60Hz Is Available On Request |
| Warranty | 8000hours | Altitude | <1000m |
| High Light | residential cogeneration units,domestic cogeneration systems |
||
Product Description
Asynchronous CHP 15KW 20KVA with 4Y Engine Speed 1500/1800 Water-cooled Type
Electrical Output:15KW
Characters
- CHP certified with CE certification.
- Water-cooled 4Y engine / Made in China
- water-cooled alternator / Made in China.
- Recover heat from 3 soures engine jacket water, exhaust and alternator cooling water.
- Exhaust temperature lower than 100℃.
- Comprehensive heat insulation to minimize heat loss.
- All inner pipelines are made of full stainless steel.
- Environmentally friendly design.
- Long time research and testing ensure high reliability.
- Maximum lower the noise level.
- Maintenance friendly thanks to easy access.
Main Specifications
| Model | SP15N | |
| fuel | — | Natural Gas |
| marks | — | A-synchro CHP |
| electrical output(KWe) | kVA/kWe | Continuous Power |
| 19/15 | ||
| thermal output(KWt) | kWt | 31.5 |
| electrical efficiency | % | 28.57% |
| thermal efficiency | % | 60.00% |
| overall efficiency | % | 88.57% |
| frequency | Hz | 50 |
| voltage | V | 400/230 |
| gas inlet pressure | kPa | 1-10 |
| Water Flow | m³/h | 2 |
| dimension (soundproof type) | mm*mm*mm | 1800*780*1020 |
| net weight | kgs | 650 |
| NG consumption | m3/kW.h | 0.355 |
| Certificate | — | CE |
| water-water heat exchanger | — | SWEP |
| water-exhaust heat exchanger | — | designed by our own factory/made of full stainless steel |
| ignition system | — | Impco |
| speed governor | — | Woodward |
| gas filter | — | Madas |
| zero regulator | — | Maxitrol |
| pressure gauge | — | DUNGS |
| soft start | — | ABB |
| switch | — | ABB |
| lambda control | — | Available on request |
| catalyst converter | — | Available on request |
| Controller | ComAp | |
| Engine model | — | SP-4Y |
| Engine type | — | 4 cylinders,4stroke,water-coolled |
| RPM | — | 1500 |
| Compression Ratio | — | 9.6 |
| Displacement | — | 2.237L |
| Oil capacity | — | 4.2L |
| Charging voltage | — | 12V(DC) |
| Charging current | — | 6A(DC) |
| Starting system | — | Electic-start |
| model | — | SP17AW |
| phase | — | 3 phase |
| insulation system | — | class H |
| protection | — | IP65 |
| Cooling Type | — | water cooled |
| max return temp | ℃ | 70 |
For more specifications about the CHP, please consult with your sales representative.Thanks.
On-site CHP Picture
