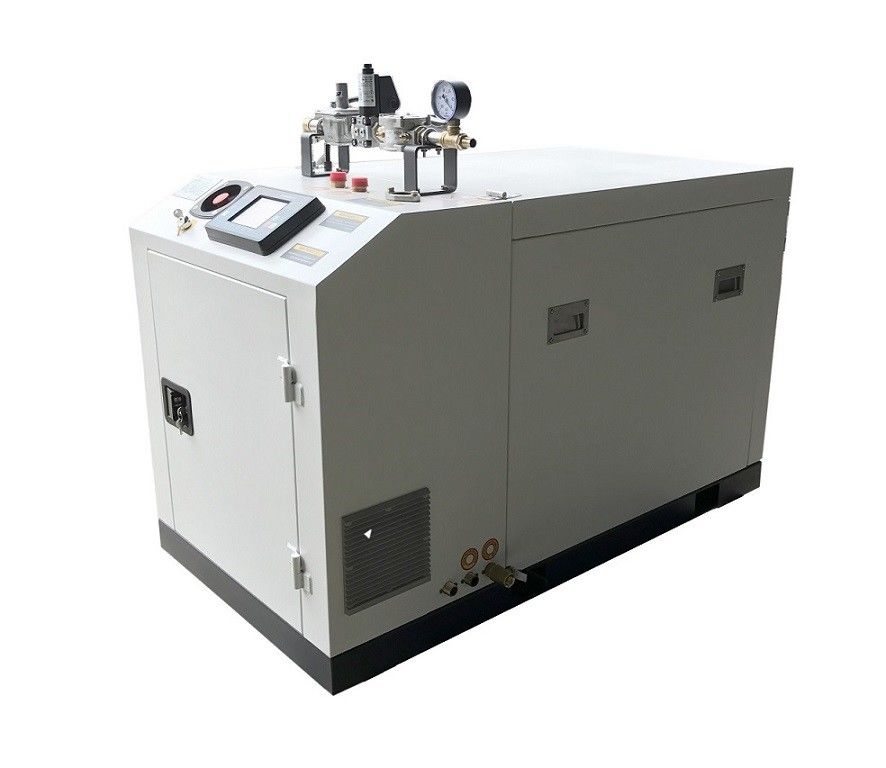

Name: 20KW 25KVA Residential CHP Units With Asynchronous Water Cooled Alternator
Brand: Chengdu Sevenpower Generating Equipment Co., Ltd.
SKU: SP20N
Availability: InStock

Brand Name:	SevenPower
Model Number:	SP20N
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Chengdu,China

Certification:

Engine Cooling:

Water Cooling

Cylinder:

RPM:

1500/1800

Alternator Cooling:

Water Cooling

Frequency:

50HZ/60HZ

Gas Pressure:

3-7kpa

Highlight:

residential cogeneration units

domestic cogeneration systems

Product Description

Bhkw 20KW 25KVA Cogenerator With Asynchronous Water-Cooled Alternator

Electrical Output:20KW

Main Specifications and Characters

CE approved.
Water-cooled engine, water cooling Asynchronous alternator.
Recover heat from 3 soures, engine jacket water, exhaust and alternator cooling water.
Comprehensive heat insulation to minimize heat loss.
Exhaust temperature lower than 100℃.

	Model	SP22N
	Model	SP22N
fuel	—	Natural Gas
marks	—	A-synchro CHP
electrical output(KWe)	kVA/kWe	Continuous Power
electrical output(KWe)	kVA/kWe	25/20
thermal output(KWt)	kWt	43.6
electrical efficiency	%	28.41%
thermal efficiency	%	61.92%
overall efficiency	%	90.33%
frequency	Hz	50
voltage	V	400/230
gas inlet pressure	kPa	1-10
Water Flow	m³/h	2
dimension (soundproof type)	mmmmmm	18007801020
net weight	kgs	700
NG consumption	m3/kW.h	0.357
Certificate	—	CE
water-water heat exchanger	—	SWEP
water-exhaust heat exchanger	—	designed by our own factory/made of full stainless steel
ignition system	—	Impco
speed governor	—	Woodward
gas filter	—	Madas
zero regulator	—	Maxitrol
pressure gauge	—	DUNGS
soft start	—	ABB
switch	—	ABB
lambda control	—	Available on request
catalyst converter	—	Available on request
Controller		ComAp
Engine model	—	SP-3RZ
Engine type	—	4 cylinders,4stroke,16valves,water-coolled
RPM	—	1500
Compression Ratio	—	10.5
Displacement	—	2.7L
Oil capacity	—	5.5L
Charging voltage	—	12V(DC)
Charging current	—	6A(DC)
Starting system	—	Electic-start
model	—	SP22AW
phase	—	3 phase
insulation system	—	class H
protection	—	IP65
Cooling Type	—	water cooled
max return temp	℃	70

For more specifications about the CHP, please consult with your sales representative.Thanks.

On-site Picture

20KW 25KVA Residential CHP Units With Asynchronous Water Cooled Alternator 0

Tags:

residential cogeneration units

domestic cogeneration systems

home combined heat and power
