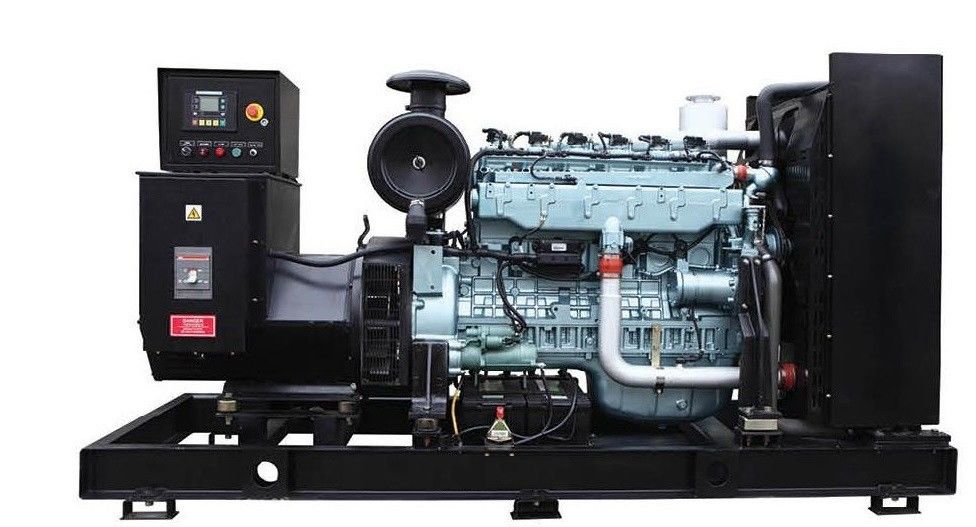

RPM1500 Internal Combustion Engine 200KVA AC Three Phase Natural Gas Generator Set
  • name
  • name
  • name

RPM1500 Internal Combustion Engine 200KVA AC Three Phase Natural Gas Generator Set

Brand Name: SevenPower
Model Number: SP180N
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Chengdu,China
Certification:
CE
Frequency:
50Hz, 60Hz Is Available On Request
RPM:
1500/50Hz, 1800/60Hz
Color:
White Or Black, Other Colors Is Available On Request
Fuel:
Natural Gas, Biogas Is Available On Request
Soundproof Canopy:
With Or Without
Emissions:
Customised,available On Request
Highlight:

cng generator set

,

quiet natural gas generator

Product Description

RPM1500 Internal Combustion Engine 200KVA AC Three Phase Natural Gas Generator Set

Requirements for Natural gas

1. Methane should be no less than 85%
2. The natural gas temperature should be between 0-40 ℃
3. No impurity in the gas. Water in the gas should be no more than 20g/Nm3.
4. Heat value should be no less than 8500kcal/m3
5. Gas pressure should be 3-7KPa, if not,booster fan or reducer is required.

Control Features

- The monitor and display on the voltage, current, frequency, active power, apparent power, power factor of the generated electricity / grid electricity.
- The monitor and display on the genset’s water temperature, oil pressure, rotational speed, battery voltage, running hours, accumulative total power and number of starts.
- Protection alarm and fault automatic storage on high water temperature, low oil pressure, double speeding, over current, over voltage, over frequency and phase failure etc.

Main Specifications

 ModelSP200N
fuel—Natural Gas
marks—Synchro Genset
electrical output(KWe)kVA/kWeContinuous Power
200/160
frequencyHz50
voltageV400/230
gas inlet pressurekPa3-5
dimension (soundproof type)mm*mm*mm2900*1600*1800
net weightkg3500
NG consumptionm3/kW.h0.28
db(A)@7m—59
Certificate—CE
ignition system—Impco
speed governor—Woodward
mixer—Venturi type
gas filter—Madas
zero regulator—Kromschroeder
solenoid valve—ABB
gas pressure gauge—ABB
MCB—ABB
GCB—ABB
Controller ComAp
Engine model—STEYR T12
Engine type—6 cylinders,4stroke,water-coolled
RPM—1800
Compression Ratio—11.0
Displacement—11.6L
Oil capacity—24L
Charging voltage—24V(DC)
Charging current—5A(DC)
Starting system—Electic-start
Alternator model—Meccalte
phase—3 phase 4 wires
insulation system—class H
protection—IP23
Cooling Type—air cooled


3*200KW in Parallel on site

RPM1500 Internal Combustion Engine 200KVA AC Three Phase Natural Gas Generator Set 0

RPM1500 Internal Combustion Engine 200KVA AC Three Phase Natural Gas Generator Set 1

For more information about the Generator Set, please consult with your sales representative.Thanks.
