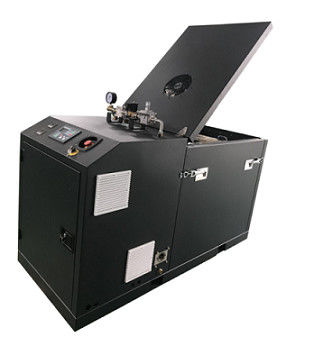

15KW 20KVA Micro CHP , Micro Cogeneration Unit Environmentally Friendly Design
| Place of Origin | Chengdu,China |
|---|---|
| Brand Name | SevenPower |
| Certification | CE |
| Model Number | SP15N |
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Delivery Time | 25days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fuel | Natural Gas | Frequency | 50Hz |
|---|---|---|---|
| Electrical Output | 15kw | Cylinders | 4 |
| Soundproof Canopy | With | Emissions | Customised, Available On Request |
| Engine Cooling | Water Cooled | Speed | RPM1500 |
| High Light | small scale chp,micro combined heat and power |
||
Product Description
Micro CHP 15KW 20KVA CHP With 4Y Engine Water-cooled Engine 4Cylinders Engine RPM1500
Continuous Power 15KW
Characters
CE approved.
Environmentally friendly design.
Long time R & D and testing ensure high reliability.
Comprehensive heat insulation to minimize heat loss.
CHP inner pipelines are made of full stainless steel material.
Maximum lower the noise level.
Maintenance friendly thanks to easy access.
CHP Main Specifications
| Model | SP17N | |
| fuel | — | Natural Gas |
| marks | — | Synchro CHP |
| electrical output(KWe) | kVA/kWe | Continuous Power |
| 19/15 | ||
| thermal output(KWt) | kWt | 30 |
| electrical efficiency | % | 28.57% |
| thermal efficiency | % | 57.13% |
| overall efficiency | % | 85.70% |
| frequency | Hz | 50 |
| voltage | V | 400/230 |
| gas inlet pressure | kPa | 3-5 |
| dimension (soundproof canopy) | mm*mm*mm | 1800*780*1020 |
| net weight | kgs | 650 |
| NG consumption | m3/kW.h | 0.355 |
| standard type-db(A)@7m | — | 57 |
| Certificate | — | CE |
| water-water heat exchanger | — | SWEP |
| water-exhaust heat exchanger | — | designed by our own factory/made of full stainless steel |
| ignition system | — | Impco |
| speed governor | — | Woodward |
| mixer | — | Venturi type |
| gas filter | — | Madas |
| zero regulator | — | Maxitrol |
| solenoid valve | — | JL |
| gas pressure gauge | — | Dungs |
| Lambda auto control | — | YES |
| catalyst converter | — | With |
| NOx and CO | — | below 50mg/Nm3 @5% O2 |
| MCB | — | ABB |
| GCB | — | ABB |
For more information about each CHP, please consult with your sales representative.Thanks.
Micro CHP On Site Picture

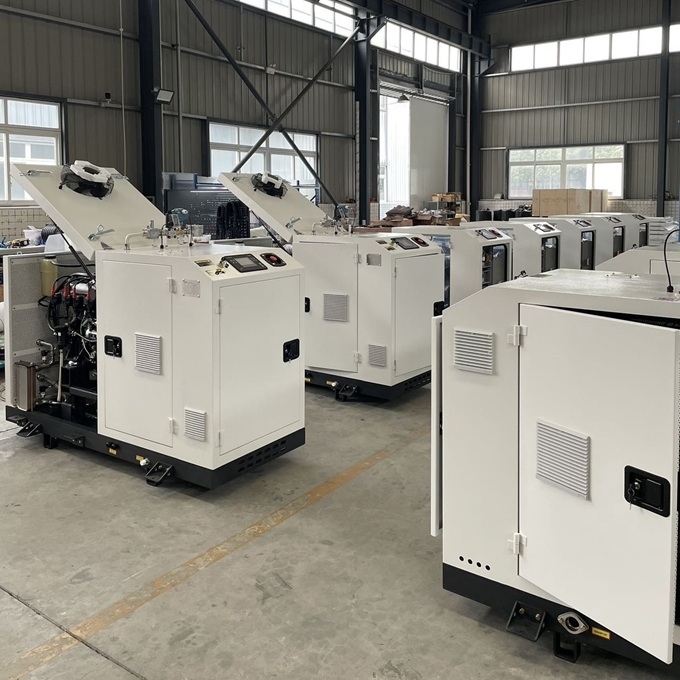

More Information About Our Factory
