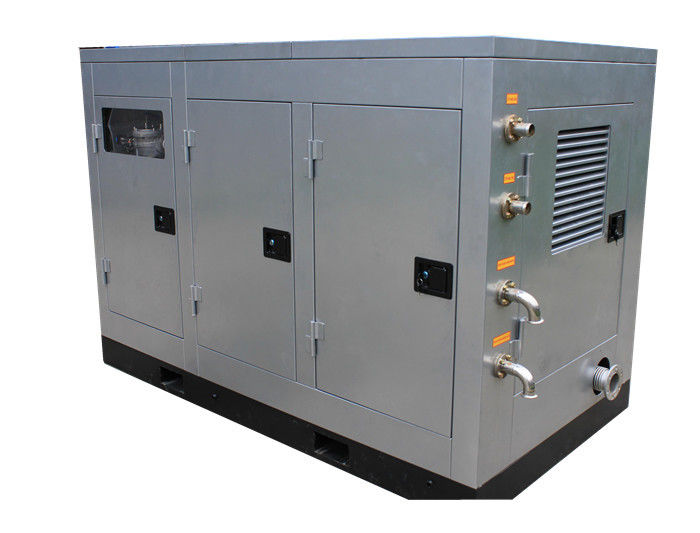

High Efficiency Natural Gas Combined Heat And Power Unit 50Hz 4 Wires 35KW
| Place of Origin | Chengdu,China |
|---|---|
| Brand Name | SevenPower |
| Certification | CE |
| Model Number | SP35N |
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Delivery Time | 25days |
| Payment Terms | L/C, T/T |
Product Details
| Frequency | 50Hz, 60Hz Is Available On Request | Electrical Output | 35KW |
|---|---|---|---|
| Color | Black, Other Colors Is Available On Request | Soundproof Canopy | With Or Without |
| Fuel | Natural Gas | Emissions | Available On Request |
| Power Factor | 0.8 | Voltage | 400/230V, Other Voltage Is Available On Request |
| High Light | natural gas cogeneration,natural gas combined heat and power |
||
Product Description
China Made 50Hz 3Phase 4Wires 35KW Natural Gas Combined Heat And Power Unit CE Approved
Control Features
- The monitor and display on the voltage, current, frequency, active power, apparent power, power factor of the generated electricity / grid electricity.
- The monitor and display on the CHP water temperature, oil pressure, rotational speed, battery voltage, running hours, accumulative total power and number of starts.
- Protection alarm and fault automatic storage on high water temperature, low oil pressure, double speeding, over current, over voltage, over frequency and phase failure etc.
Scope Of Supply
a) Gas engine with all accessories
b) Alternator
c) Base or Soundproof canopy
d) Water-water heat exchanger
e) Exhaust heat exchanger
f) Gas train
g) Air filter
h) Control panel
i) Circuit breaker
j) Shock absorber
k) High-efficient silencer
Main Specifications
| Model | SP35N | |
| fuel | — | Natural Gas |
| marks | — | Synchro CHP |
| electrical output(KWe) | kVA/kWe | Continuous Power |
| 44/35 | ||
| thermal output(KWt) | kWt | 56 |
| electrical efficiency | % | 32.7% |
| thermal efficiency | % | 51.4% |
| overall efficiency | % | 84.1% |
| frequency | Hz | 50 |
| voltage | V | 400/230 |
| gas inlet pressure | kPa | 3-5 |
| dimension (soundproof type) | mm*mm*mm | 2100*1200*1500 |
| net weight | kgs | 1100 |
| NG consumption | m3/kW.h | 0.31 |
| standard type-db(A)@7m | — | 58 |
| Certificate | — | CE |
| water-water heat exchanger | — | SWEP |
| water-exhaust heat exchanger | — | designed by our own factory/made of full stainless steel |
| ignition system | — | Impco |
| speed governor | — | Woodward |
| mixer | — | Venturi type |
| gas filter | — | Madas |
| zero regulator | — | Kromschroeder |
| solenoid valve | — | Kromschroeder |
| gas pressure gauge | — | Dungs |
| Lambda auto control | — | Available on request with extral cost |
| catalyst converter | — | Available on request with extral cost |
| MCB | — | ABB |
| GCB | — | ABB |
| Controller | ComAp | |
| Engine model | — | SP-4BTA |
| Engine type | — | 4 cylinders,4stroke,water-coolled |
| RPM | — | 1500 |
| Compression Ratio | — | 10.5 |
| Displacement | — | 3.9L |
| Oil capacity | — | 9.5L |
| Charging voltage | — | 24V(DC) |
| Charging current | — | 5A(DC) |
| Starting system | — | Electic-start |
| Alternator model | — | Meccalte |
| phase | — | 3 phase 4 wires |
| insulation system | — | class H |
| protection | — | IP23 |
| Cooling Type | — | air cooled |
Scope Of Application
For more information about the 35kw CHP, please consult with your sales representative.Thanks.
