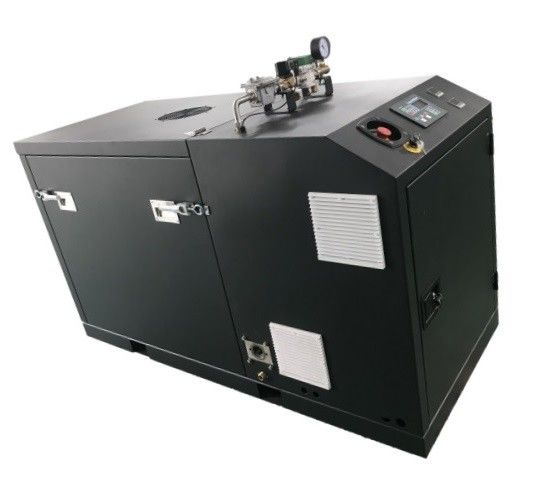

Water Cooled Micro CHP 20KW Micro Cogeneration Systems 4 Cylinders Engine
| Place of Origin | Chengdu,China |
|---|---|
| Brand Name | SevenPower |
| Certification | CE |
| Model Number | SP20N |
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Delivery Time | 25days |
| Payment Terms | L/C, T/T |
Product Details
| Fuel | Natural Gas | Frequency | 50Hz |
|---|---|---|---|
| Electrical Output | 20kw | Color | White Or Black, Other Colors Please Consult With The Sales |
| Soundproof Canopy | With | Emissions | Customised, Available On Request |
| High Light | micro cogeneration unit,micro combined heat and power,Micro CHP Generator |
||
Product Description
Micro CHP 50Hz 25KVA 20KW 4Cylinders Engine Water Cooled RPM1500
SevenPower CHP applications are where there is a demand for both electricity and hot water or heating.
● Houses ● Apartment Buildings ● Office blocks
● Commercial Buildings ● Spas ● Hotels
● Bakeries ● Breweries ● Schools
● Gyms ● Dairies ● Leisure Centers
● Sauna ● Hospitals ● Swimming Pools
● Zoos ● Stables ● Inn
......
The engine exhaust fumes contain carbon monoxide gas, which is colorless and odorless and can be DEADLY. This dangerous gas,if breathed in sufficient concentrations, can cause unconsciousness or even death. For that reason,adequate ventilation must be provided. Exhaust gases must be piped safely away from any building or enclosure that houses the generator to an area where people, animals, etc., will not be harmed.The exhaust system must be installed properly, in strict compliance with applicable codes and standards.
20KW CHP Main Specifications
| Model | SP20N | |
| fuel | — | Natural Gas |
| marks | — | Synchro CHP |
| electrical output(KWe) | kVA/kWe | Continuous Power |
| 25/20 | ||
| thermal output(KWt) | kWt | 41.5 |
| electrical efficiency | % | 28.41% |
| thermal efficiency | % | 58.94% |
| overall efficiency | % | 87.35% |
| frequency | Hz | 50 |
| voltage | V | 400/230 |
| gas inlet pressure | kPa | 3-5 |
| dimension (soundproof type) | mm*mm*mm | 1800*780*1020 |
| net weight | kgs | 700 |
| NG consumption | m3/kW.h | 0.357 |
| standard type-db(A)@7m | — | 58 |
| Certificate | — | CE |
| water-water heat exchanger | — | SWEP |
| water-exhaust heat exchanger | — | designed by our own factory/made of full stainless steel |
| ignition system | — | Impco |
| speed governor | — | Woodward |
| mixer | — | Venturi type |
| gas filter | — | Madas |
| zero regulator | — | Maxitrol |
| solenoid valve | — | JL |
| gas pressure gauge | — | Dungs |
| Lambda auto control | — | Available on request with extral cost |
| catalyst converter | — | Available on request with extral cost |
| MCB | — | ABB |
| GCB | — | ABB |
| ComAp IC | ||
| Engine model | — | SP-3RZ |
| Engine type | — | 4 cylinders,4stroke,16valves,water-coolled |
| RPM | — | 1500 |
| Compression Ratio | — | 10.5 |
| Displacement | — | 2.7L |
| Oil capacity | — | 5.5L |
| Charging voltage | — | 12V(DC) |
| Charging current | — | 6A(DC) |
| Starting system | — | Electic-start |
| model | — | Meccalte |
| phase | — | 3 phase 4 wires |
| insulation system | — | class H |
| protection | — | IP23 |
| Cooling Type | — | air cooled |
For more information about each CHP, please consult with your sales representative.Thanks.
