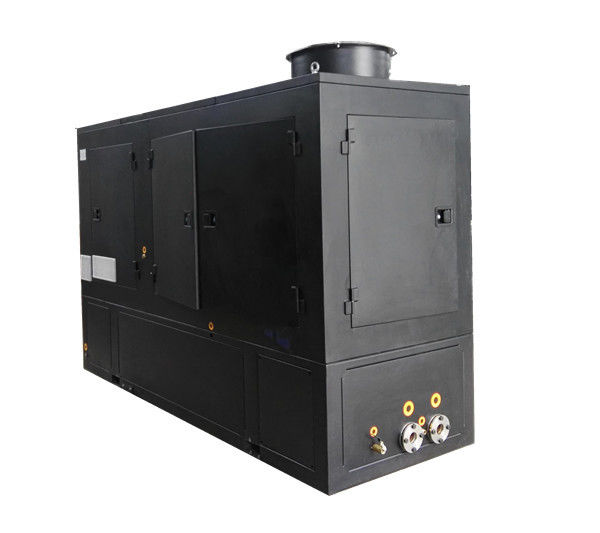

Clean Energy Biogas CHP , Combined Heat Power System 130KW 3 Phase CE Approved
  • Name

Clean Energy Biogas CHP , Combined Heat Power System 130KW 3 Phase CE Approved

Brand Name: SevenPower
Model Number: SP130B
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Chengdu,China
Certification:
CE
Fuel:
Biogas
CH4:
>=55%
Frequency:
50Hz,60Hz Is Available On Request
RPM:
1500
Start:
Electrical Auto Start
Engine Type:
Water-cooled
Overhauling Time:
25000hours
Altitude:
<1000meters
Highlight:

biogas cogeneration

,

chp combined heat power

Product Description

Clean Energy Chinese Biogas CHP 130KW 3 Phase CE Approved

Gurantee
Within the guarantee period
Replace any part(s) for free which is found to be defective under normal use and service, in accordance with the maintenance schedule, and SevenPower pays for the transportation cost.

CHP Main Specifications

  Model SP130B
fuel — Biogas
marks — Synchro CHP
electrical output(KWe) kVA/kWe Continuous Power
162/130
thermal output(KWe) kWt 194
electrical efficiency % 33.2%
thermal efficiency % 49.6%
overall efficiency % 82.8%
frequency Hz 50
voltage V 400/230
gas inlet pressure kPa 3-5
dimension (soundproof type) mm*mm*mm 2900*1600*1800
net weight kg 3500
Biogas consumption m3/kW.h 0.42
Biogas consumption for one hours m3/h 54.6
db(A)@7m — 59
Certificate — CE
water-water heat exchanger — SWEP
water-exhaust heat exchanger — made of stainless steel
ignition system — Impco
speed governor — Woodward
gas filter — Madas
zero regulator — Kromschroeder
MCB — ABB
GCB — ABB
Controller   ComAp
Engine model — STYER T10
Engine type — 6 cylinders,4stroke,water-coolled
RPM — 1500
Compression Ratio — 11.0
Displacement — 9.726L
Oil capacity — 24L
Charging voltage — 24V(DC)
Charging current — 5A(DC)
Starting system — Electic-start
model — Meccalte
phase — 3 phase 4 wires
insulation system — class H
protection — IP23
Cooling Type — air cooled


Characters

Environmentally friendly design.
Long time R&D and testing ensure high reliability.
Comprehensive heat insulation to minimize heat loss.
CHP inner pipelines are made of full stainless steel material.
Maximum lower the noise level.
Maintenance friendly thanks to easy access.

Biogas Requirements

Composition Content
CH4 ≥55%
fluctuations value of biogas in pipeline <0.2Kpa
hydrogen <10%
sulfide, including hydrogen sulphide <200mg/m3
chlorine fluorine compounds,mainly chlorofluoromethane <15mg/m3
silicium <0.7mg/m3
ammonia <15mg/m3
liquid oil and hydrocarbons <50mg/m3
particles <5μm Impurity content<30mg/m3


Clean Energy Biogas CHP , Combined Heat Power System 130KW 3 Phase CE Approved 0

For more information about each CHP, please consult with your sales representative.Thanks.
