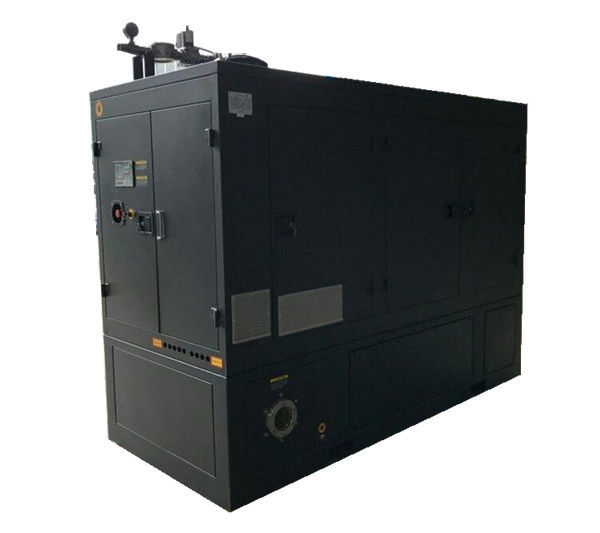

Clean Energy Biogas Combined Heat Power 200KVA 160KW Three Phase Low Noise
  • Name

Clean Energy Biogas Combined Heat Power 200KVA 160KW Three Phase Low Noise

Brand Name: SevenPower
Model Number: SP160B
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Chengdu,China
Certification:
CE
Fuel:
Biogas
CH4:
>=55%
Frequency:
50Hz,60Hz Is Available On Request
RPM:
1500
Start:
Electrical Auto Start
Engine Type:
Water-cooled
Overhauling Time:
25000hours
Altitude:
<1000meters
Highlight:

biogas cogeneration

,

combined heat and power unit

Product Description

Clean Energy China Biogas CHP 200KVA 160KW 3 Phase CE Verified

Biogas is well known as clean energy, biogas CHP solved the problem of livestock waste, reduce greenhouse gas emissions, generate both electricity and heat, with high overall efficiency to achieve maximum utilization of resources.
CHP Main Specifications


  Model SP160B
fuel — Biogas
marks — Synchro CHP
electrical output(KWe) kVA/kWe Continuous Power
200/160
thermal output(KWe) kWt 236
electrical efficiency % 33.6%
thermal efficiency % 49.6%
overall efficiency % 83.2%
frequency Hz 50
voltage V 400/230
gas inlet pressure kPa 3-5
dimension (soundproof type) mm*mm*mm 2900*1600*1800
net weight kg 3500
Biogas consumption m3/kW.h 0.42
Biogas consumption for one hours m3/h 67.2
db(A)@7m — 59
Certificate — CE
water-water heat exchanger — SWEP
water-exhaust heat exchanger — made of stainless steel
ignition system — Impco
speed governor — Woodward
gas filter — Madas
zero regulator — Kromschroeder
MCB — ABB
GCB — ABB
Controller   ComAp
Engine model — STYER T12
Engine type — 6 cylinders,4stroke,water-coolled
RPM — 1500
Compression Ratio — 11.0
Displacement — 11.6L
Oil capacity — 36L
Charging voltage — 24V(DC)
Charging current — 5A(DC)
Starting system — Electic-start
model — Meccalte
phase — 3 phase 4 wires
insulation system — class H
protection — IP23
Cooling Type — air cooled


Characters

Environmentally friendly design.
Long time R&D and testing ensure high reliability.
Comprehensive heat insulation to minimize heat loss.
CHP inner pipelines are made of full stainless steel material.
Maximum lower the noise level.
Maintenance friendly thanks to easy access.

Biogas Requirements

Composition Content
CH4 ≥55%
fluctuations value of biogas in pipeline <0.2Kpa
hydrogen <10%
sulfide, including hydrogen sulphide <200mg/m3
chlorine fluorine compounds,mainly chlorofluoromethane <15mg/m3
silicium <0.7mg/m3
ammonia <15mg/m3
liquid oil and hydrocarbons <50mg/m3
particles <5μm Impurity content<30mg/m3


Clean Energy Biogas Combined Heat Power 200KVA 160KW Three Phase Low Noise 0

For more information about each CHP, please consult with your sales representative.Thanks.

Biogas CHP On-site Picture(Installed In Year 2013)
Clean Energy Biogas Combined Heat Power 200KVA 160KW Three Phase Low Noise 1



More Information About Our Factory

Our Packing

Clean Energy Biogas Combined Heat Power 200KVA 160KW Three Phase Low Noise 2

Our Hannover Exhibition

Clean Energy Biogas Combined Heat Power 200KVA 160KW Three Phase Low Noise 3

Our Showroom In Germany

Clean Energy Biogas Combined Heat Power 200KVA 160KW Three Phase Low Noise 4



Our Customers' Visiting

Clean Energy Biogas Combined Heat Power 200KVA 160KW Three Phase Low Noise 5
