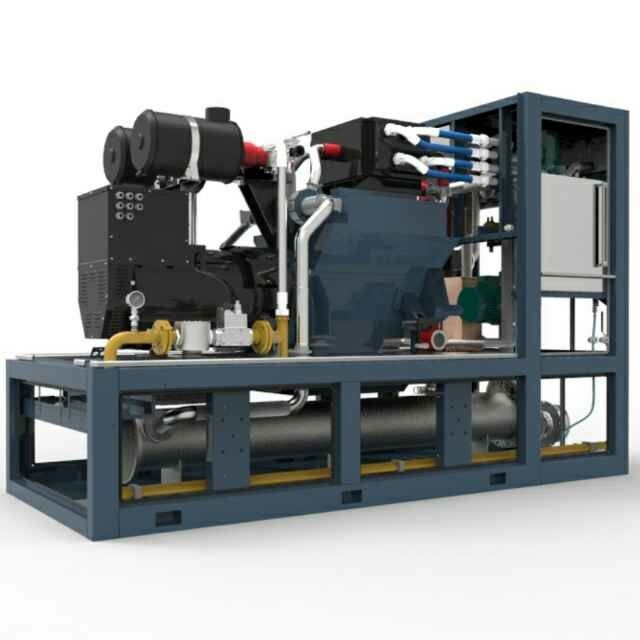

3 Phase Biogas Combined Heat And Power Systems 220KW 400V / 230V High Reliability

Brand Name:	SevenPower
Model Number:	SP220B
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Chengdu,China

Certification:

Fuel:

Biogas

CH4:

>=55%

Frequency:

50Hz,60Hz Is Available On Request

RPM:

1500

Start:

Electrical Auto Start

Engine Type:

Water-cooled

Overhauling Time:

25000hours

Altitude:

<1000meters

Highlight:

biogas cogeneration

chp combined heat power

Product Description

Remote Control 220KW 3 Phase Biogas CHP 400V / 230V Clean Power CE Approved

HIGH ALTITUDE OPERATION

At high altitude, the standard gas mixer will be excessively rich. Performance will decrease, and fuel consumption will increase.
High altitude performance can be improved by installing a smaller diameter main fuel jet in the mixer and readjusting the pilot screw. If you always operate the engine at altitudes higher than 5000 feet (1500 meters) above sea level, have an authorized CHP dealer perform this mixer modification.
Even with suitable mixer jetting, engine horsepower will decrease approximately 3.5% for each 1000 foot (300 meter) increase in altitude. The effect of altitude on horsepower will be greater than this if no carburetor modification is made.

CHP Main Specifications

	Model	SP220B
	Model	SP220B
fuel	—	Biogas
marks	—	Synchro CHP
electrical output(KWe)	kVA/kWe	Continuous Power
electrical output(KWe)	kVA/kWe	313/220
thermal output(KWe)	kWt	315
electrical efficiency	%	34%
thermal efficiency	%	48.7%
overall efficiency	%	82.7%
frequency	Hz	50
voltage	V	400/230
gas inlet pressure	kPa	3-5
dimension (soundproof type)	mmmmmm	350018002000
net weight	kg	4000
Biogas consumption	m³/kW.h	0.41
Biogas consumption for one hours	m3/h	102.5
db(A)@7m	—	59
Certificate	—	CE
water-water heat exchanger	—	SWEP
water-exhaust heat exchanger	—	made of stainless steel
ignition system	—	Altronic
speed governor	—	Woodward
gas filter	—	Madas
zero regulator	—	Kromschroeder
MCB	—	ABB
GCB	—	ABB
Controller		ComAp
Engine model	—	MAN MT13
Engine type	—	6 cylinders,4stroke,water-coolled
RPM	—	1500
Compression Ratio	—	11.5
Displacement	—	12.419L
Oil capacity	—	40L
Charging voltage	—	24V(DC)
Charging current	—	5A(DC)
Starting system	—	Electic-start
Alternator model	—	Meccalte
phase	—	3 phase 4 wires
insulation system	—	class H
protection	—	IP23
Cooling Type	—	air cooled

Characters

Environmentally friendly design.
Long time R&D and testing ensure high reliability.
Comprehensive heat insulation to minimize heat loss.
CHP inner pipelines are made of full stainless steel material.
Maximum lower the noise level.
Maintenance friendly thanks to easy access.

Biogas Requirements

Composition	Content
CH4	≥55%
fluctuations value of biogas in pipeline	<0.2Kpa
hydrogen	<10%
sulfide, including hydrogen sulphide	<200mg/m3
chlorine fluorine compounds,mainly chlorofluoromethane	<15mg/m3
silicium	<0.7mg/m3
ammonia	<15mg/m3
liquid oil and hydrocarbons	<50mg/m3
particles	<5μm Impurity content<30mg/m3

3 Phase Biogas Combined Heat And Power Systems 220KW 400V / 230V High Reliability 0

For more information about each CHP, please consult with your sales representative.Thanks.
