Characters

Environmentally friendly design.
Long time R&D and testing ensure high reliability.
Maximum lower the noise level.
Maintenance friendly thanks to easy access.

Control module has indicators for failure information:

Over-speed/under-speed,

Emergency stop

Low oil pressure;

High water temperature

Failure to start

Overload

Mains failure

Synchronization failure

Speed governing limit

Phase missing

CHP Main Specifications

	Model	SP220B
	Model	SP220B
fuel	—	Biogas
marks	—	Synchro Genset
electrical output(KWe)	kVA/kWe	Continuous Power
electrical output(KWe)	kVA/kWe	280/220
frequency	Hz	50
voltage	V	400/230
gas inlet pressure	kPa	3-5
dimension (soundproof type)	mmmmmm	350018002000
net weight	kg	4000
Biogas consumption	m³/kW.h	0.41
Biogas consumption for one hours	m3/h	102.5
db(A)@7m	—	59
Certificate	—	CE
ignition system	—	Altronic
speed governor	—	Woodward
gas filter	—	Madas
zero regulator	—	Kromschroeder
MCB	—	ABB
GCB	—	ABB
Controller		ComAp
Engine model	—	MAN MT13
Engine type	—	6 cylinders,4stroke,water-coolled
RPM	—	1500
Compression Ratio	—	11.5
Displacement	—	12.419L
Oil capacity	—	40L
Charging voltage	—	24V(DC)
Charging current	—	5A(DC)
Starting system	—	Electic-start
Alternator model	—	Meccalte
phase	—	3 phase 4 wires
insulation system	—	class H
protection	—	IP23
Cooling Type	—	air cooled

Biogas Requirements

Composition	Content
CH4	≥55%
fluctuations value of biogas in pipeline	<0.2Kpa
hydrogen	<10%
sulfide, including hydrogen sulphide	<200mg/m3
chlorine fluorine compounds,mainly chlorofluoromethane	<15mg/m3
silicium	<0.7mg/m3
ammonia	<15mg/m3
liquid oil and hydrocarbons	<50mg/m3
particles	<5μm Impurity content<30mg/m3

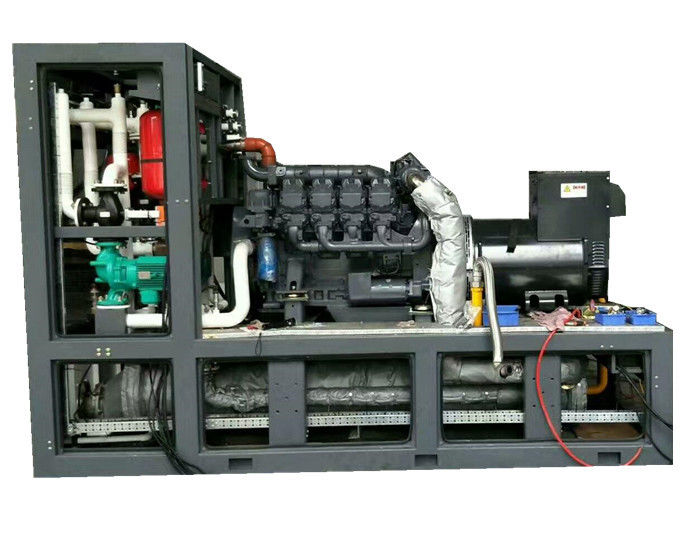

280KVA 220KW Biogas Electric Generator Stable Performance Easy Maintenance 0

For more information about each CHP, please consult with your sales representative.Thanks.
