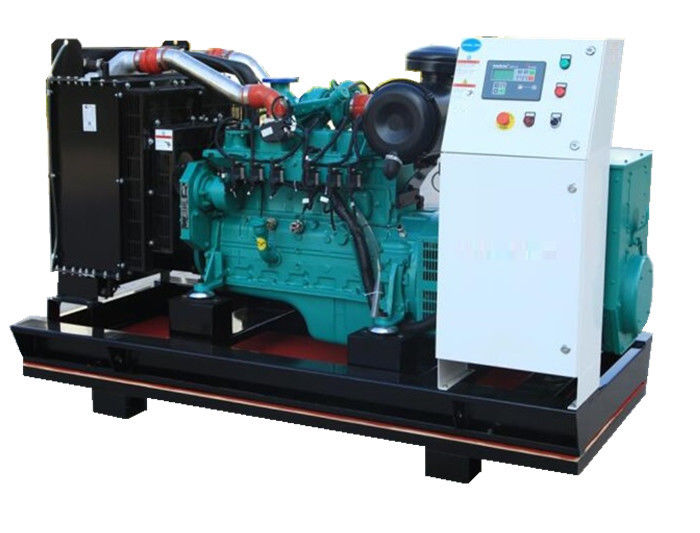

Clean Energy Biogas Generator Set , 130KW 160KVA Methane Engine Generator

Brand Name:	SevenPower
Model Number:	SP130B
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Chengdu,China

Certification:

Fuel:

Biogas

CH4:

>=55%

Frequency:

50Hz,60Hz Is Available On Request

RPM:

1500

Start:

Electrical Auto Start

Engine Type:

Water-cooled

Overhauling Time:

25000hours

Altitude:

<1000meters

Highlight:

biogas operated generator

biogas electric generator

Product Description

Clean Energy Chinese Biogas Generator 130KW 3 Phase CE Approved

CONNECTIONS TO A BUILDING’S ELECTRICAL SYSTEM

Connections for generator to a building’s electrical system must be made by a qualified electrician. The connection must isolate the generator power from utility power, and must comply with all applicable laws and electrical codes.

Gurantee

Within the guarantee period

Replace any part(s) for free which is found to be defective under normal use and service, in accordance with the maintenance schedule, and SevenPower pays for the transportation cost.

CHP Main Specifications

	Model	SP130B
	Model	SP130B
fuel	—	Biogas
marks	—	Synchro CHP
electrical output(KWe)	kVA/kWe	Continuous Power
electrical output(KWe)	kVA/kWe	162/130
frequency	Hz	50
voltage	V	400/230
gas inlet pressure	kPa	3-5
dimension (soundproof type)	mmmmmm	290016001800
net weight	kg	3500
Biogas consumption	m³/kW.h	0.42
Biogas consumption for one hours	m3/h	54.6
db(A)@7m	—	59
Certificate	—	CE
ignition system	—	Impco
speed governor	—	Woodward
gas filter	—	Madas
zero regulator	—	Kromschroeder
MCB	—	ABB
GCB	—	ABB
Controller		ComAp
Engine model	—	STYER T10
Engine type	—	6 cylinders,4stroke,water-coolled
RPM	—	1500
Compression Ratio	—	11.0
Displacement	—	9.726L
Oil capacity	—	24L
Charging voltage	—	24V(DC)
Charging current	—	5A(DC)
Starting system	—	Electic-start
model	—	Meccalte
phase	—	3 phase 4 wires
insulation system	—	class H
protection	—	IP23
Cooling Type	—	air cooled

Characters

Environmentally friendly design.
Long time R & D and testing ensure high reliability.
Comprehensive heat insulation to minimize heat loss.
CHP inner pipelines are made of full stainless steel material.
Maximum lower the noise level.
Maintenance friendly thanks to easy access.

Biogas Requirements

Composition	Content
CH4	≥55%
fluctuations value of biogas in pipeline	<0.2Kpa
hydrogen	<10%
sulfide, including hydrogen sulphide	<200mg/m3
chlorine fluorine compounds,mainly chlorofluoromethane	<15mg/m3
silicium	<0.7mg/m3
ammonia	<15mg/m3
liquid oil and hydrocarbons	<50mg/m3
particles	<5μm Impurity content<30mg/m3

Clean Energy Biogas Generator Set , 130KW 160KVA Methane Engine Generator 0

For more information about each CHP, please consult with your sales representative.Thanks.
