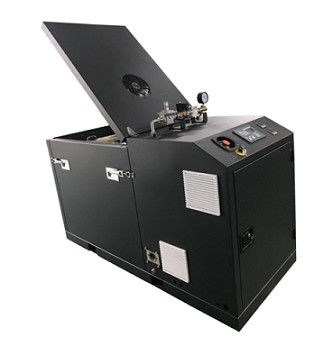

8KW 10KVA Micro CHP Unit Low Emissions Low Noise Super Silent BHKW 50Hz

Brand Name:	SevenPower
Model Number:	SP8N SP15N SP20N
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Chengdu,China

Certification:

Fuel:

Natural Gas, Biogas Or LPG Is Available On Request

Frequency:

50Hz,60Hz Is Available On Request

Electrical Output:

8kw/50Hz, 10kw/60Hz

Speed:

RPM1500/50Hz, RPM1800/60Hz

Soundproof Canopy:

With Or Without

Emissions:

Customised, Available On Request

Highlight:

small scale chp

micro cogeneration unit

Low Emissions BHKW

Product Description

8KW 10KVA Micro CHP Unit Low Emissions Low Noise Super Silent BHKW 50Hz

Characters

- CE approved.
- Environmentally friendly design.
- Long time R&D and testing ensure high reliability.
- Comprehensive heat insulation to minimize heat loss.
- CHP inner pipelines are made of full stainless steel material.
- Maximum lower the noise level, super silent with noise level 56dB(A)@1m only!
- Maintenance friendly thanks to easy access.

Main Specifications:

Item		Model	SP8N
Item		Model	SP8N
	fuel	—	Natural Gas
	marks	—	Synchro CHP
CHP	electrical output(KWe)	kVA/kWe	Continuous Power
	electrical output(KWe)	kVA/kWe	10/8
	thermal output(KWt)	kWt	19.5
	electrical efficiency	%	25.60%
	thermal efficiency	%	62.60%
	overall efficiency	%	88.20%
	frequency	Hz	50
	voltage	V	400/230
	gas inlet pressure	kPa	3-5
	dimension (soundproof type)	mmmmmm	1530750940
	net weight	kgs	580
	NG consumption	m³/kW.h	0.396
	standard type-db(A)@1m	—	56
	Certificate	—	CE
	water-water heat exchanger	—	SWEP
	water-exhaust heat exchanger	—	designed by our own factory/made of full stainless steel
	ignition system	—	Impco
	speed governor	—	Woodward
	mixer	—	Venturi type
	gas filter	—	Madas
	zero regulator	—	Maxitrol
	solenoid valve	—	JL
	gas pressure gauge	—	Dungs
	Lambda auto control	—	YES
	catalyst converter	—	With
	NOx and CO	—	below 50mg/Nm3 @5% O2
	MCB	—	ABB
	GCB	—	ABB
Controller			ComAp IC
Engine	Engine model	—	SP9EW
	Engine type	—	4 cylinders,4stroke,16valves,water-coolled
	RPM	—	1500
	Compression Ratio	—	11
	Displacement	—	1.5L
	Oil capacity	—	3.9L
	Charging voltage	—	12V(DC)
	Charging current	—	6A(DC)
	Starting system	—	Electic-start
Alternator	model	—	Meccalte
	phase	—	3 phase 4 wires
	insulation system	—	class H
	protection	—	IP23
	Cooling Type	—	air cooled

Gas Train
8KW 10KVA Micro CHP Unit Low Emissions Low Noise Super Silent BHKW 50Hz 0

Micro CHP On Site Picture

For more information about each CHP, please consult with your sales representative.Thanks.
