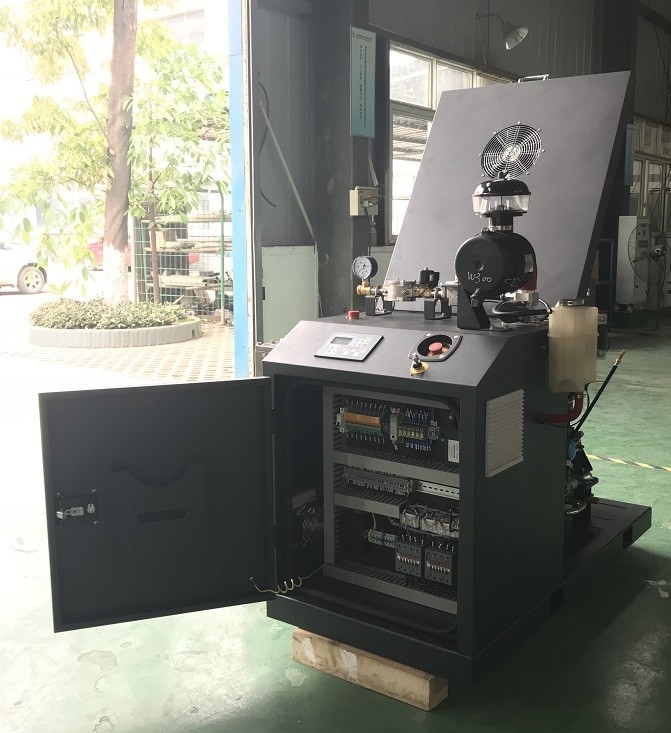

Super Silent Micro Combined Heat And Power Units With Water Cooling Engine RPM1800

Place of Origin Chengdu,China
Brand Name SevenPower
Certification CE
Model Number SP10N
Minimum Order Quantity 1 Set
Price Negotiable
Delivery Time 25days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Fuel Natural Gas, Biogas Or LPG Is Available On Request Frequency 60Hz
Electrical Output 10kw Speed RPM1800
Soundproof Canopy With Or Without Emissions Customised, Available On Request
High Light

small scale chp

,

micro combined heat and power

,

CHP Biogas Generator

Leave a Message
Product Description

60Hz  220V / 127V  Micro CHP Mini CHP 10KW Natural Gas CHP Powered With Water-Cooling Engine RPM1800 Super Silent

Characters

- Long time R&D and testing ensure high reliability.


- Controllers are equipped with a powerful graphic display showing icons, symbols and bar-graphs for intuitive operation, which sets, together with high functionality, new standards in gen-set controls.The controller automatically starts the gen-set, closes the gen-set C.B. when all conditions are met, then stops the engine on external signal or by pressing push buttons.



- Parallel to Mains operation can be achieved. Forward and reverse synchronizing, Mains protection including vector shift, load and power factor control, earth fault protection are the major functions provided. Interfacing to foreign synchronizers and load sharers is supported.



- Easy-to-use installation and operation.



- Comprehensive heat insulation to minimize heat loss.



- CHP inner pipelines are made of full stainless steel material.



- Maximum lower the noise level.



- Maintenance friendly thanks to easy access.




Main Specifications:



Model SP10N



Fuel — Natural Gas



CHP electrical output

Continuous Power kVA/kWe 13/10

thermal output(KWt) kWt 24.4

electrical efficiency  25.60%

thermal efficiency   62.60%

overall efficiency   88.20%

gas inlet pressure 3-5 kPa

dimension (soundproof type) 1530*750*940mm

net weight  580kgs

NG consumption  0.396 m3/kW.h

standard type — 57db(A) @ 7m

Certificate — CE

water-water heat exchanger — SWEP

water-exhaust heat exchanger — designed by our own factory/made of full stainless steel

ignition system — Impco

speed governor — Woodward

mixer — Venturi type

gas filter — Madas

zero regulator — Maxitrol

solenoid valve — JL

gas pressure gauge — Dungs

Lambda auto control — Optional

catalyst converter — Optional

NOx and CO — Available on request

MCB — ABB

GCB — ABB



Controller ComAp IC

Engine Engine model — SP9EW

Engine type — 4 cylinders,4stroke,16valves,water-coolled

RPM — 1500

Compression Ratio — 11

Displacement — 1.5L

Oil capacity — 3.9L

Charging voltage — 12V(DC)

Charging current — 6A(DC)

Starting system — Electic-start



Alternator model — Meccalte

phase — 3 phase 4 wires

insulation system — class H

protection — IP23

Cooling Type — air cooled



Gas Train
Super Silent Micro Combined Heat And Power Units With Water Cooling Engine RPM1800 0

Micro CHP On Site Picture
Super Silent Micro Combined Heat And Power Units With Water Cooling Engine RPM1800 1
For more information about each CHP, please consult with your sales representative.Thanks.
