Green Energy Biogas CHP 16KW 20KVA , Biogas Combined Heat Power System CE Verified

Brand Name:	SevenPower
Model Number:	SP16B
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Chengdu,China

Certification:

Fuel:

Biogas

CH4:

>=55%

Frequency:

50Hz,60Hz Is Available On Request

RPM:

1500

Start:

Electrical Auto Start

Engine Type:

Water-cooled

Overhauling Time:

25000hours

Altitude:

<1000meters

Highlight:

combined heat and power unit

chp combined heat power

Biogas BHKW

Product Description

Green Energy Biogas CHP 16KW 20KVA Single Phase CE Verified Biogas Cogeneration

Biogas is well known as clean energy, biogas CHP solved the problem of livestock waste, reduce greenhouse gas emissions, generate both electricity and heat, with high overall efficiency to achieve maximum utilization of resources.
CHP Main Specifications

Acceptable fuel gas pressure: 3~7kPa, CH4 content ≥55%
Gas low heat value (LHV) ≥25MJ/Nm3. If LHV<25MJ/Nm3, gas engine power output will be decreased.
Gas doesn't include any free condensation water or free materials (the size of impurities should be less than 5μm.)
H2S content≤ 100ppm. NH3 content≤ 50ppm. Silicon content ≤ 5 mg/Nm3
Impurities content≤30mg/Nm3, size≤5μm
No free water.

Characters

Environmentally friendly design.
Long time R&D and testing ensure high reliability.
Comprehensive heat insulation to minimize heat loss.
CHP inner pipelines are made of full stainless steel material.
Maximum lower the noise level.
Maintenance friendly thanks to easy access.

Biogas Requirements

Composition	Content
CH4	≥55%
fluctuations value of biogas in pipeline	<0.2Kpa
hydrogen	<10%
sulfide, including hydrogen sulphide	<200mg/m3
chlorine fluorine compounds,mainly chlorofluoromethane	<15mg/m3
silicium	<0.7mg/m3
ammonia	<15mg/m3
liquid oil and hydrocarbons	<50mg/m3
particles	<5μm Impurity content<30mg/m3

CHP Main Specifications

Item		Model	SP16B
Item		Model	SP16B
	fuel	—	Biogas
	marks	—	Synchro CHP
CHP	electrical output(KWe)	kVA/kWe	Continuous Power
	electrical output(KWe)	kVA/kWe	20/16
	thermal output(KWe)	kWt	33
	electrical efficiency	%	25.84%
	thermal efficiency	%	53.3%
	overall efficiency	%	79.14%
	frequency	Hz	50
	voltage	V	380/220
	gas inlet pressure	kPa	1-10
	dimension (soundproof type)	mmmmmm	18007801020
	net weight	kg	700
	Biogas consumption	m³/kW.h	0.540
	Biogas consumption for one hours	m3/h	8.64
	db(A)@7m	—	58
	Certificate	—	CE
	water-water heat exchanger	—	SWEP
	water-exhaust heat exchanger	—	made of full stainless steel
	ignition system	—	Impco
	speed governor		Woodward
	gas filter	—	Madas
	zero regulator	—	Maxitrol
	MCB	—	ABB
	GCB	—	ABB
Controller			ComAp/CZ
Engine	Engine model	—	SP-3RZ
	Engine type	—	4 cylinders,4stroke,16valves,water-coolled
	RPM	—	1500
	Compression Ratio	—	10.5
	Displacement	—	2.7L
	Oil capacity	—	5.5L
	Charging voltage	—	12V(DC)
	Charging current	—	6A(DC)
	Starting system	—	Electic-start
Alternator	model	—	Meccalte
	phase	—	3 phase 4 wires
	insulation system	—	class H
	protection	—	IP23
	Cooling Type		air cooled

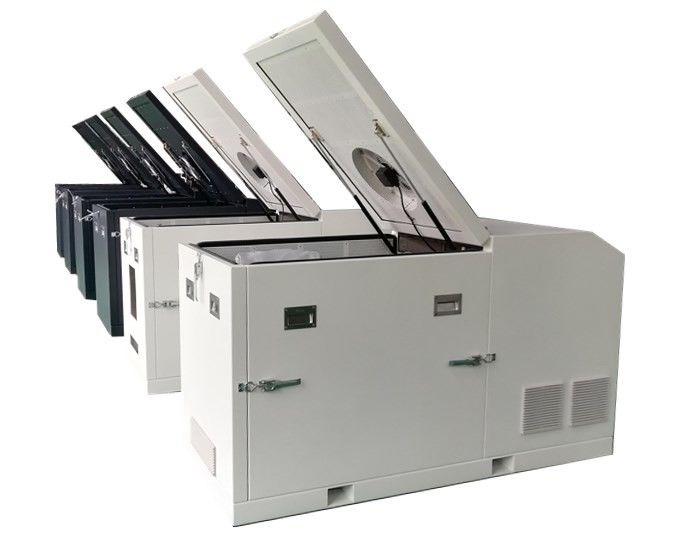

Green Energy Biogas CHP 16KW 20KVA , Biogas Combined Heat Power System CE Verified 0

For more information about each CHP, please consult with your sales representative.Thanks.
