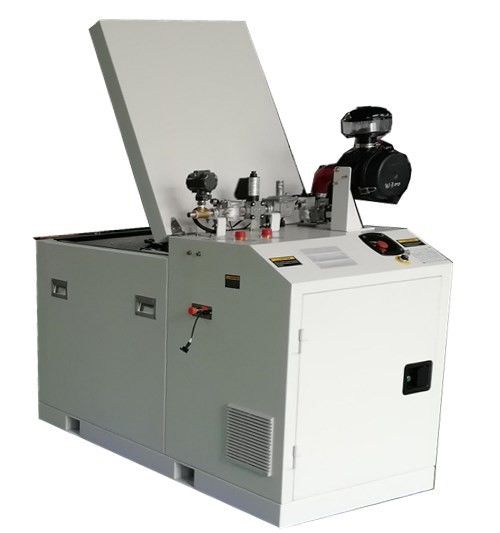

Biogas Fuel CHP Combined Heat Power 220V 50Hz 6KW Single Phase Water Cooled
| Place of Origin | Chengdu,China |
|---|---|
| Brand Name | SevenPower |
| Certification | CE |
| Model Number | SP6B |
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Delivery Time | 25days |
| Payment Terms | L/C, T/T |
Product Details
| Fuel | Biogas | CH4 | >=55% |
|---|---|---|---|
| Frequency | 50Hz,60Hz Is Available On Request | RPM | 1500 |
| Start | Electrical Auto Start | Engine Type | Water-cooled |
| Overhauling Time | 25000hours | Altitude | <1000meters |
| High Light | biogas cogeneration,chp combined heat power,Combined Heat Power BHKW |
||
Product Description
50Hz 220V Clean Energy Sustainable Cogeneration Sustainable Power Supply Biogas CHP 6KW Single Phase CE Approved
Biogas is well known as clean energy, biogas CHP solved the problem of livestock waste, reduce greenhouse gas emissions, generate both electricity and heat, with high overall efficiency to achieve maximum utilization of resources.
Using a CHP or electrical appliance in wet conditions, such as rain or snow, or near a pool or sprinkler system, or when your hands are wet, could result in electrocution. Keep the CHP dry.
Characters
Environmentally friendly design.
Long time R&D and testing ensure high reliability.
Comprehensive heat insulation to minimize heat loss.
CHP inner pipelines are made of full stainless steel material.
Maximum lower the noise level.
Maintenance friendly thanks to easy access.
Biogas Requirements
| Composition | Content |
| CH4 | ≥55% |
| fluctuations value of biogas in pipeline | <0.2Kpa |
| hydrogen | <10% |
| sulfide, including hydrogen sulphide | <200mg/m3 |
| chlorine fluorine compounds,mainly chlorofluoromethane | <15mg/m3 |
| silicium | <0.7mg/m3 |
| ammonia | <15mg/m3 |
| liquid oil and hydrocarbons | <50mg/m3 |
| particles | <5μm Impurity content<30mg/m3 |
CHP Main Specifications
| Item | Model | SP6B | |
| fuel | — | Biogas | |
| marks | — | Synchro CHP | |
| CHP | electrical output(KWe) | kVA/kWe | Continuous Power |
| 7.5/6 | |||
| thermal output(KWe) | kWt | 14.3 | |
| electrical efficiency | % | 25.37% | |
| thermal efficiency | % | 60.47% | |
| overall efficiency | % | 85.84% | |
| frequency | Hz | 50 | |
| voltage | V | 220 | |
| gas inlet pressure | kPa | 1-10 | |
| dimension (soundproof type) | mm*mm*mm | 1530*750*940 | |
| net weight | kg | 580 | |
| Biogas consumption | m3/kW.h | 0.550 | |
| Biogas consumption for one hours | m3/h | 3.30 | |
| db(A)@7m | — | 57 | |
| Certificate | — | CE | |
| water-water heat exchanger | — | SWEP | |
| water-exhaust heat exchanger | — | designed by our own factory/made of full stainless steel | |
| ignition system | — | Impco | |
| speed governor | Woodward | ||
| gas filter | — | Madas | |
| zero regulator | — | Maxitrol | |
| MCB | — | ABB | |
| GCB | — | ABB | |
| Controller | ComAp/CZ | ||
| Engine | Engine model | — | SP9EW |
| Engine type | — | 4 cylinders,4stroke,16valves,water-coolled | |
| RPM | — | 1500 | |
| Compression Ratio | — | 11 | |
| Displacement | — | 1.5L | |
| Oil capacity | — | 3.9L | |
| Charging voltage | — | 12V(DC) | |
| Charging current | — | 6A(DC) | |
| Starting system | — | Electic-start | |
| Alternator | model | — | Meccalte |
| phase | — | Single phase | |
| insulation system | — | class H | |
| protection | — | IP23 | |
| Cooling Type | air cooled |
For more information about each CHP, please consult with your sales representative.Thanks.
