60Hz 250KW Industrial CHP , Energy Saving Industrial Heat And Power
| Place of Origin | Chengdu,China |
|---|---|
| Brand Name | SevenPower |
| Certification | CE |
| Model Number | SP270N |
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Delivery Time | 30days |
| Payment Terms | L/C, T/T |
Product Details
| Fuel | Natural Gas | Frequency | 60Hz, 50Hz Is Available On Request |
|---|---|---|---|
| Electrical Output | 250kw | Color | White Or Black, Other Colors Please Consult With The Sales |
| Emissions | Below 500mg/Nm3 | Sounproof Canopy | With Or Without |
| High Light | industrial heat and power,combined heat power system |
||
Product Description
60Hz 250kW Industrial Natural Gas Generator Set With CHP Energy Saving 300KVA Generator Set With Heat Recovery
Why SevenPower?
- Environmentally friendly design
- Long time research and development and testing for high reliability
- Comprehensive heat insulation to minimize heat losses
- Water-to-water heat exchanger/SWEP, self-developed exhaust heat exchanger which is made of full stainless steel instead of universal carbon steel which get rusty easily.
- CHP inner pipeline is made of full stainless steel.
- Maximum lower the noise level
- Maintenance friendly thanks to easy access
- Long service intervals
- Suitable for mains parallelling
- CE approved
- Installation and maintenance guide
- Free debugging
- Training the operator
- Supply the spare parts during the whole service life.
- Overseas service
If this CHP is used to supply power to any electrical system normally powered by an electric utility, the National Electrical Code required that a transfer switch be installed. The transfer switch prevents electrical back feed between two different electrical systems. The transfer switch, as well as the CHP and other standby components, must be properly located and mounted in strict compliance with applicable codes, standards and regulations.
Main Specifications
| Item | Model | SP260N | |
| fuel | — | Natural Gas | |
| marks | — | Synchro CHP | |
| CHP | electrical output(KWe) | kVA/kWe | Continuous Power |
| 312.5/270 | |||
| thermal output(KWt) | kWt | 370 | |
| electrical efficiency | % | 35% | |
| thermal efficiency | % | 47.9% | |
| overall efficiency | % | 82.9% | |
| frequency | Hz | 60 | |
| voltage | V | 440/254 | |
| gas inlet pressure | kPa | 3-5 | |
| dimension (soundproof type) | mm*mm*mm | 2900*1600*1800 | |
| net weight | kgs | 3500 | |
| NG consumption | m3/kW.h | 0.29 | |
| standard type-db(A)@7m | — | 59 | |
| Certificate | — | CE | |
| water-water heat exchanger | — | SWEP | |
| water-exhaust heat exchanger | — | designed by our own factory/made of full stainless steel | |
| ignition system | — | Altronic or ECI | |
| speed governor | — | Woodward or Hainzmann or ECI | |
| mixer | — | Venturi type | |
| gas filter | — | Madas | |
| zero regulator | — | Kromschroeder | |
| Lambda auto control | — | Available on request | |
| emission standard | — | Available on request | |
| MCB | — | ABB | |
| GCB | — | ABB | |
| Controller | ComAp IC | ||
| Engine | Engine model | — | MT13 |
| Engine type | — | 6 cylinders,4stroke,water-coolled | |
| RPM | — | 1800 | |
| Compression Ratio | — | 11.0 | |
| Displacement | — | 11.6L | |
| Oil capacity | — | 36L | |
| Charging voltage | — | 24V(DC) | |
| Charging current | — | 5A(DC) | |
| Starting system | — | Electic-start | |
| Alternator | model | — | Meccalte |
| phase | — | 3 phase 4 wires | |
| insulation system | — | class H | |
| protection | — | IP23 | |
| Cooling Type | — | air cooled |

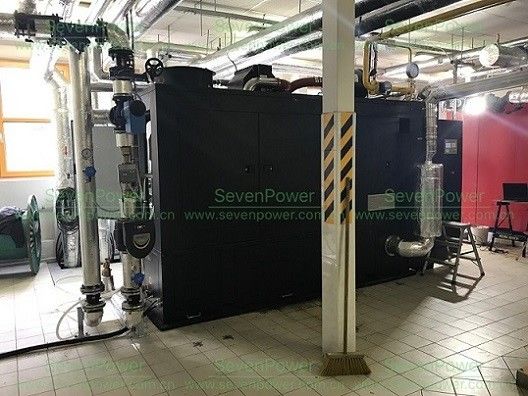

Natural Gas CHP On Site Picture
For more information about the CHP, please consult with your sales representative.Thanks.
