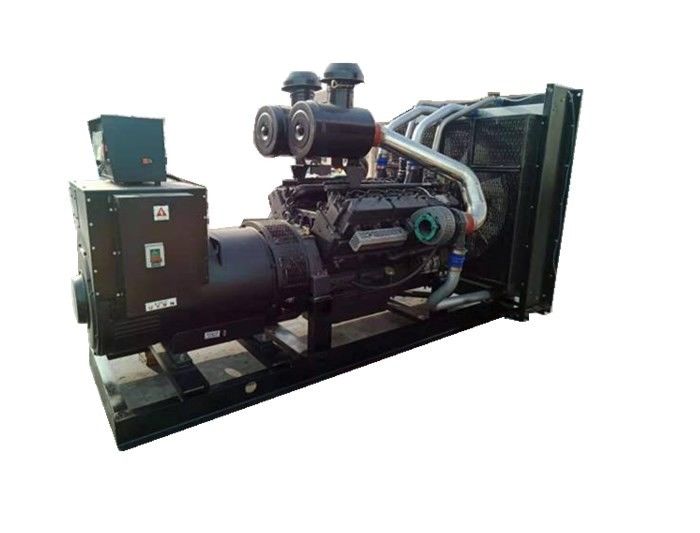

200KW Energy Saving Natural Gas Engine Generator With CHP Heat Recovery System

Brand Name:	SevenPower
Model Number:	SP270N
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Chengdu,China

Certification:

Fuel:

Natural Gas

Frequency:

60Hz, 50Hz Is Available On Request

Electrical Output:

200kw

Color:

White Or Black, Other Colors Please Consult With The Sales

Emissions:

Below 500mg/Nm3

Sounproof Canopy:

With Or Without

Highlight:

cng generator set

quiet natural gas generator

Product Description

60Hz 200kw 300KVA Natural Gas Generator Set With CHP Energy Saving 300KVA Generator Set With Heat Recovery System

Why SevenPower?

- Environmentally friendly design

- Long time research and development and testing for high reliability
- Maximum lower the noise level
- Maintenance friendly thanks to easy access
- Long service intervals
- Suitable for mains parallelling

- CE approved

- Installation and maintenance guide

- Free debugging

- Training the operator

- Supply the spare parts during the whole service life.

- Overseas service

STORAGE TIME / RECOMMENDED SERVICE PROCEDURE TO PREVENT HARD STARTING

Less than 1 month
- Drain all CHP water.

More than 1 month
- Change engine oil.
- Remove the spark plug, and pour about a tablespoon of clean engine oil into the cylinder. Crank the engine several revolutions to distribute the oil, then reinstall the spark plug.
- Slowly pull the starter grip until resistance is felt. At this point, the piston is coming up on its compression stroke and both the intake and exhaust valves are closed. Storing the engine in this position will help to protect it from internal corrosion.

Main Specifications

Item		Model	SP260N
Item		Model	SP260N
	fuel	—	Natural Gas
	marks	—	Synchro Genset
CHP	electrical output(KWe)	kVA/kWe	Continuous Power
	electrical output(KWe)	kVA/kWe	312.5/270
	frequency	Hz	60
	voltage	V	440/254
	gas inlet pressure	kPa	3-5
	dimension (soundproof type)	mmmmmm	290016001800
	net weight	kgs	3500
	NG consumption	m³/kW.h	0.29
	standard type-db(A)@7m	—	59
	Certificate	—	CE
	ignition system	—	Altronic or ECI
	speed governor	—	Woodward or Hainzmann or ECI
	mixer	—	Venturi type
	gas filter	—	Madas
	zero regulator	—	Kromschroeder
	Lambda auto control	—	Available on request
	emission standard	—	Available on request
	MCB	—	ABB
	GCB	—	ABB
Controller			ComAp IC
Engine	Engine model	—	MT13
	Engine type	—	6 cylinders,4stroke,water-coolled
	RPM	—	1800
	Compression Ratio	—	11.0
	Displacement	—	11.6L
	Oil capacity	—	36L
	Charging voltage	—	24V(DC)
	Charging current	—	5A(DC)
	Starting system	—	Electic-start
Alternator	model	—	Meccalte
	phase	—	3 phase 4 wires
	insulation system	—	class H
	protection	—	IP23
	Cooling Type	—	air cooled

For more information about the Genset, please consult with your sales representative.Thanks.

Options: Multi-units In Parallel + Synchronization to Grid + Remote Control
