Three Phase Biogas Generator Set , 127V 250KW Biogas Powered Electric Generator

Brand Name:	SevenPower
Model Number:	SP250B
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Chengdu,China

Certification:

Fuel:

Biogas

CH4:

>=55%

Frequency:

60Hz

RPM:

1800

Start:

Electrical Auto Start

Engine Type:

Water-cooled

Overhauling Time:

25000hours

Altitude:

<1000meters

Highlight:

biogas operated generator

methane engine generator

Product Description

60Hz Remote Monitoring 250KW 300KVA 3 Phase Biogas Genset 127V Green Energy CE Certified

Biogas is well known as clean energy, biogas generator set solved the problem of livestock waste, reduce greenhouse gas emissions, generate electricity to achieve maximum utilization of resources.

Why SevenPower?

- Environmentally friendly design
- Long time research and development and testing for high reliability
- Maximum lower the noise level
- Maintenance friendly thanks to easy access
- Long service intervals
- Suitable for mains parallelling
- CE approved

After – sale Service
- Installation guide and maintenance manual
- Guide user to install the machine and debug the machine for free.
- Training the operators for safe operation
- Supply the spare parts during the whole service life.
- Overseas maintenance service
- Collecting feedbacks from end user ,avoid potential problem and solve problems in time.

CHP Main Specifications

Item		Model	SP250B
Item		Model	SP250B
	fuel	—	Biogas
	marks	—	Synchro Genset
CHP	electrical output(KWe)	kVA/kWe	Continuous Power
	electrical output(KWe)	kVA/kWe	313/250
	frequency	Hz	60
	voltage	V	110/220
	gas inlet pressure	kPa	3-5
	dimension (soundproof type)	mmmmmm	350018002000
	net weight	kg	4000
	Biogas consumption	m³/kW.h	0.41
	Biogas consumption for one hours	m3/h	102.5
	db(A)@7m	—	59
	Certificate	—	CE
	ignition system	—	Altronic
	speed governor	—	Woodward
	gas filter	—	Madas
	zero regulator	—	Kromschroeder
	MCB	—	ABB
	GCB	—	ABB
Controller			ComAp/CZ
Engine	Engine model	—	MAN MT13
	Engine type	—	6 cylinders,4stroke,water-coolled
	RPM	—	1800
	Compression Ratio	—	11.0
	Displacement	—	12.419L
	Oil capacity	—	40L
	Charging voltage	—	24V(DC)
	Charging current	—	5A(DC)
	Starting system	—	Electic-start
Alternator	model	—	Meccalte
	phase	—	3 phase 4 wires
	insulation system	—	class H
	protection	—	IP23
	Cooling Type	—	air cooled

Biogas Requirements

Composition	Content
CH4	≥55%
fluctuations value of biogas in pipeline	<0.2Kpa
hydrogen	<10%
sulfide, including hydrogen sulphide	<200mg/m3
chlorine fluorine compounds,mainly chlorofluoromethane	<15mg/m3
silicium	<0.7mg/m3
ammonia	<15mg/m3
liquid oil and hydrocarbons	<50mg/m3
particles	<5μm Impurity content<30mg/m3

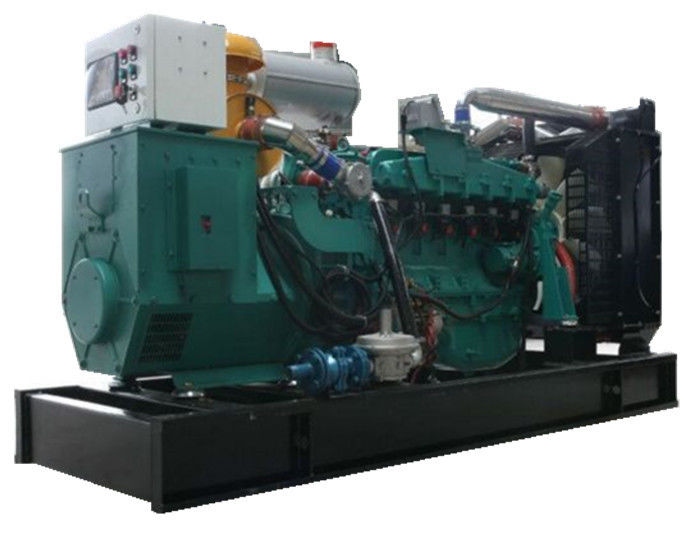

Three Phase Biogas Generator Set , 127V 250KW Biogas Powered Electric Generator 0

For more information about the genset, please consult with your sales representative.Thanks.
