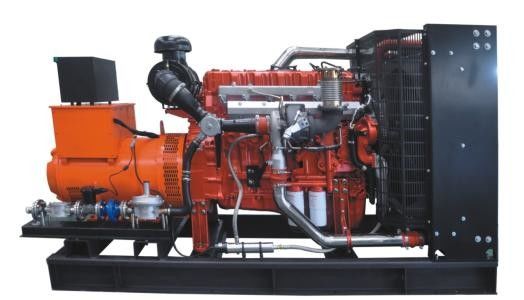

Renewable Energy Biogas Operated Generator Remote Control Environmental Friendly
| Place of Origin | Chengdu,China |
|---|---|
| Brand Name | SevenPower |
| Certification | CE |
| Model Number | SP180B |
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Delivery Time | 25days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fuel | Biogas | CH4 | >=55% |
|---|---|---|---|
| Frequency | 60Hz | RPM | 1800 |
| Start | Electrical Auto Start | Engine Type | Water-cooled |
| Overhauling Time | 25000hours | Altitude | <1000meters |
| High Light | biogas operated generator,biogas electric generator |
||
Product Description
Automatic Start 180KW 225KVA 3 Phase Biogas Genset 110V / 220V Renewable Energy Green Energy CE Approved Remote Control
OEM Service of gas generator set:
1. Unique design and manufacture of generator set according to customers’ requirement.
2. Customer logo printing or painting on the genset.
3. Installation and Operation manual heading according to customer requirement.
4. Full after-service support
CONNECTIONS TO A BUILDING’S ELECTRICAL SYSTEM
Connections for generator to a building’s electrical system must be made by a qualified electrician. The connection must isolate the generator power from utility power, and must comply with all applicable laws and electrical codes.
Genset Main Specifications
| Item | Model | SP180B | |
| fuel | — | Biogas | |
| marks | — | Synchro CHP | |
| CHP | electrical output(KWe) | kVA/kWe | Continuous Power |
| 225/180 | |||
| frequency | Hz | 60 | |
| voltage | V | 110/220 | |
| gas inlet pressure | kPa | 3-5 | |
| dimension (soundproof type) | mm*mm*mm | 2900*1600*1800 | |
| net weight | kg | 3700 | |
| Biogas consumption | m3/kW.h | 0.42 | |
| Biogas consumption for one hours | m3/h | 75.6 | |
| db(A)@7m | — | 59 | |
| Certificate | — | CE | |
| ignition system | — | Impco | |
| speed governor | — | Woodward | |
| gas filter | — | Madas | |
| zero regulator | — | Kromschroeder | |
| MCB | — | ABB | |
| GCB | — | ABB | |
| Controller | ComAp/CZ | ||
| Engine | Engine model | — | STYER T12 |
| Engine type | — | 6 cylinders,4stroke,water-coolled | |
| RPM | — | 1800 | |
| Compression Ratio | — | 11.0 | |
| Displacement | — | 11.6L | |
| Oil capacity | — | 36L | |
| Charging voltage | — | 24V(DC) | |
| Charging current | — | 5A(DC) | |
| Starting system | — | Electic-start | |
| Alternator | model | — | Meccalte |
| phase | — | 3 phase 4 wires | |
| insulation system | — | class H | |
| protection | — | IP23 | |
| Cooling Type | — | air cooled |
Characters
Environmentally friendly design.
Long time R&D and testing ensure high reliability.
Inner pipelines are made of full stainless steel material.
Maximum lower the noise level.
Maintenance friendly thanks to easy access.
Biogas Requirements
| Composition | Content |
| CH4 | ≥55% |
| fluctuations value of biogas in pipeline | <0.2Kpa |
| hydrogen | <10% |
| sulfide, including hydrogen sulphide | <200mg/m3 |
| chlorine fluorine compounds,mainly chlorofluoromethane | <15mg/m3 |
| silicium | <0.7mg/m3 |
| ammonia | <15mg/m3 |
| liquid oil and hydrocarbons | <50mg/m3 |
| particles | <5μm Impurity content<30mg/m3 |
For more information about each Genset, please consult with your sales representative.Thanks.
