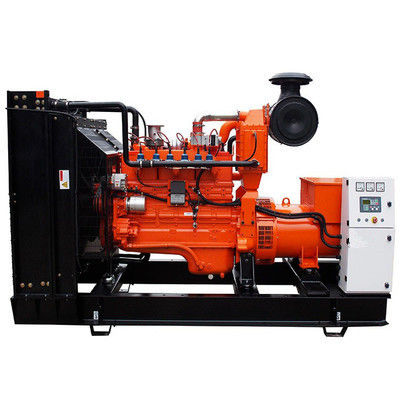

Mobile Portable Natural Gas Generator 40KW Powered With Converted CUMMINS Engine
| Place of Origin | Chengdu,China |
|---|---|
| Brand Name | SevenPower |
| Certification | CE |
| Model Number | SP40N |
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Delivery Time | 25days |
| Payment Terms | L/C, T/T |
Product Details
| Frequency | 60Hz, 50Hz Is Available On Request | Electrical Output | 40KW |
|---|---|---|---|
| Color | Black, Other Colors Is Available On Request | Soundproof Canopy | With Or Without |
| Fuel | Natural Gas | Emissions | Available On Request |
| Power Factor | 0.8 | Voltage | 440/254V, Other Voltage Is Available On Request |
| High Light | natural gas genset,quiet natural gas generator |
||
Product Description
Mobile 60Hz 3Phase 40KW 440V / 254V Natural Gas Generator Powered With Converted CUMMINS Engine CE Approved
Control Features
- The monitor and display on the voltage, current, frequency, active power, apparent power, power factor of the generated electricity / grid electricity.
- The monitor and display on the Genset water temperature, oil pressure, rotational speed, battery voltage, running hours, accumulative total power and number of starts.
- Protection alarm and fault automatic storage on high water temperature, low oil pressure, double speeding, over current, over voltage, over frequency and phase failure etc.
Scope Of Supply
a) Gas engine with all accessories
b) Alternator
c) Base or Soundproof canopy
d) Radiator with safety protection
e) Gas train
f) Air filter + oil filter
g) Control panel
h) Circuit breaker
i) Shock absorber
j) High-efficient silencer
k) Tools and manuals
Main Specifications
| Model | SP40N | |
| fuel | — | Natural Gas |
| marks | — | Synchro Genset |
| electrical output(KWe) | kVA/kWe | Continuous Power |
| 50/40 | ||
| frequency | Hz | 60 |
| voltage | V | 440/254 |
| gas inlet pressure | kPa | 3-5 |
| dimension (soundproof type) | mm*mm*mm | 2200*1200*1500 |
| net weight | kgs | 1100 |
| NG consumption | m3/kW.h | 0.31 |
| standard type-db(A)@7m | — | 58 |
| Certificate | — | CE |
| ignition system | — | Impco |
| speed governor | — | Woodward |
| mixer | — | Venturi type |
| gas filter | — | Madas |
| zero regulator | — | Kromschroeder |
| solenoid valve | — | Kromschroeder |
| gas pressure gauge | — | Dungs |
| Lambda auto control | — | Available on request with extral cost |
| catalyst converter | — | Available on request with extral cost |
| MCB | — | ABB |
| GCB | — | ABB |
| Controller | ComAp | |
| Engine model | — | SP-4BTA |
| Engine type | — | 4 cylinders,4stroke,water-coolled |
| RPM | — | 1500 |
| Compression Ratio | — | 10.5 |
| Displacement | — | 3.9L |
| Oil capacity | — | 9.5L |
| Charging voltage | — | 24V(DC) |
| Charging current | — | 5A(DC) |
| Starting system | — | Electic-start |
| Alternator model | — | Meccalte |
| phase | — | 3 phase 4 wires |
| insulation system | — | class H |
| protection | — | IP23 |
| Cooling Type | — | air cooled |
Scope Of Application
For more information about the 40kw Genset, please consult with your sales representative.Thanks.
