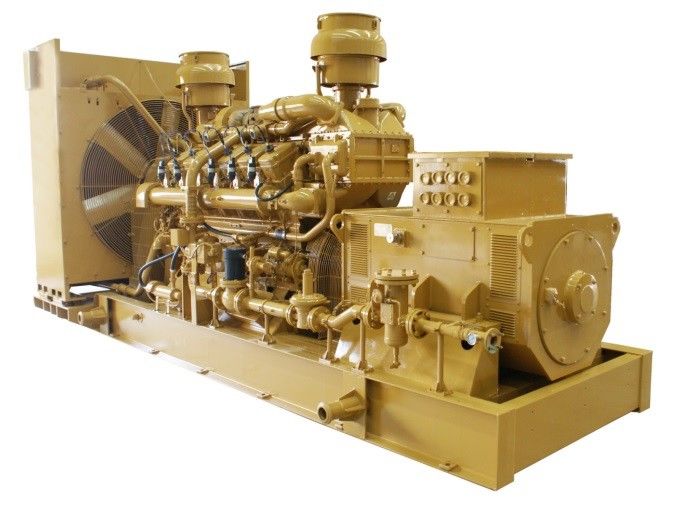

480V 600KW Natural Gas Generator Set For Factory
| Place of Origin | Chengdu,China |
|---|---|
| Brand Name | SevenPower |
| Certification | CE |
| Model Number | SP600N |
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Delivery Time | 30days |
| Payment Terms | L/C, T/T |
Product Details
| Fuel | Natural Gas | Frequency | 50Hz, 60Hz Is Available On Request |
|---|---|---|---|
| Rated Power | 600kw | Voltage | Depends |
| Emissions | Available On Request | Sounproof Canopy | With Or Without |
| High Light | 600KW Natural Gas Generator Set,480V Natural Gas Generator Set,1200rpm industrial natural gas generator |
||
Product Description
Industrial Natural Gas Generator Set 600KW Power Plant Power Supply For Factory
The Generator possesses the following automatic monitoring and protective functions:
Audio or visual alarm for:
- High oil and water temperature
- Low oil pressure
- Overcurrent
- Short circuit
- Over-speed
- Reverse power
Shut-off for:
-Low oil pressure
- Over-speed- Short circuit
- Over-speed
- Reverse power
Trip for:
- Over-current
- Short circuit
- Reverse power
MAIN SPECIFICATIONS
| Model | SP600N | Gas Engine Model | G12V190ZLDT-1 | |
| Rated power | 600kW | Alternator Model | 1FC6 Series | |
| Rated voltage | 480 V | Control panel model | SPGPL600 | |
| Rated speed | 1200rpm | Starting method | 24V DC electric start | |
| Rated frequency | 60HZ | Coupling method | Elastic coupling | |
| Rated current | 1082A | Voltage regulation | Automatic | |
| Power factor | 0.8 Lagging | Cooling Mode | Opened | |
| Control mode |
Remote electric control, Hand control |
Dimension (mm) | 6195X2200X2710mm | |
| Net Mass(kg) | 11800 |
MAIN ELECTRICAL PERFORMANCE OF THE GAS GENERATOR
| Voltage | Frequency | |||||||
| Stabilized regulation | Instantaneous regulation | Recovery time | Fluctuation | Stabilized regulation | Instantaneous regulation | Recovery time | Fluctuation | |
| ±2.5% | +20% -15% | 1.5 S | 0.5% | 0-15% adjustable | ±10% | < 7 S | 0.5% | |
CONTROL PANEL
Control panel is panel type, vertical structure.
Control panel is equipped with meters showing various parameters of operating status, automatic air switch and timer. All of the electric cells possess three-proof functions.
MAIN SPECIFICATIONS OF GAS ENGINE
| Model | G12V190ZLDT-1 |
| Rated power | 660kW |
| Number and layout of cylinders: | 12-cylinder, V-type, 60° included angle |
| Type: | Four stroke, Water cooled, Turbo-charged, air after-cooled, Electronic timing air intake valve for each cylinder |
| Fuel | Natural gas |
| Ignition type | Spark plug ignition |
| Intake gas pressure required | 100-400kPa |
| Bore´Stoke: | 190´210 mm |
| Heat consumption | ≤11000kJ/kWh |
| Gas consumption | ≤ 0.3m3/kWh |
| Oil consumption | ≤ 1.6/kWh |
| Lowest speed | 700 rpm |
| Exhaust temperature (before turbine) | ≤600 °C |
| Net mass | 5300 kg |
| Heavy overhauling period | 18000 h |
Optional Configurations
For more information about the 600KW Genset, please consult with your sales representative.Thanks.
