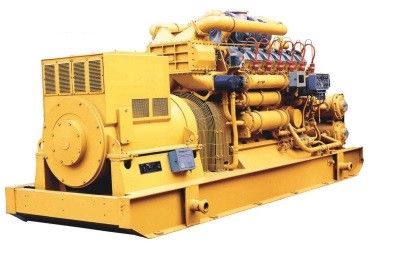

Overcurrent Protection 1000RPM 500KW Natural Gas Generator
| Place of Origin | Chengdu,China |
|---|---|
| Brand Name | SevenPower |
| Certification | CE |
| Model Number | SP500N |
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Delivery Time | 30days |
| Payment Terms | L/C, T/T |
Product Details
| Fuel | Natural Gas | Frequency | 50Hz, 60Hz Is Available On Request |
|---|---|---|---|
| Rated Power | 500kw | Voltage | Depends |
| Emissions | Available On Request | Sounproof Canopy | With Or Without |
| High Light | 500KW Natural Gas Generator,1000RPM Natural Gas Generator,50hz overcurrent protection natural gas genset |
||
Product Description
Natural Gas Generator 500KW Natural Gas Genset Power Plant Clean Energy Clean Power
The generator can not only supply power directly to load but also can be paralleled running
Control panel is equipped with meters showing various parameters of operating status, automatic air switch and timer.
The Generator possesses the following automatic monitoring and protective functions:
Audio or visual alarm for:
- High oil and water temperature
- Low oil pressure
- Overcurrent
- Short circuit
- Over-speed
- Reverse power
Shut-off for:
-Low oil pressure
- Over-speed- Short circuit
- Over-speed
- Reverse power
Trip for:
- Over-current
- Short circuit
- Reverse power
MAIN SPECIFICATIONS
| Model | SP500N | Gas Engine Model | 12V190ZDT-2 |
| Rated power | 500kW | Alternator Model | 1FC6 456-6TA42 |
| Rated voltage | 400/230 V | Control panel model | GPL-500 |
| Rated speed | 1000rpm | Coupling method | Elastic coupling |
| Rated frequency | 50Hz | Voltage regulation | Automatic |
| Starting method | 24V DC electric starting | Cooling Mode | Opened |
| Control mode |
Remote electric control, Hand control |
Dimension (mm) | 5120´2040´2550 |
| Net Mass(kg) | 12000 |
MAIN ELECTRICAL PERFORMANCE OF THE GENERATOR
| Voltage | Frequency | ||||||
| Stabilized regulation | Instantaneous regulation | Recovery time | Fluctuation | Stabilized regulation | Instantaneous regulation | Recovery time | Fluctuation |
| ±2.5% | ±15% | 1.5 S | 0.5% | 0-5% adjustable | ±5% | < 3 S | 0.5% |
MAIN SPECIFICATIONS OF GAS ENGINE
| Model | 12V190ZDT-2 |
| Rated power | 552kW |
| Number and layout of cylinders: | 12-cylinder, V-type, 60° included angle |
| Type: | Four stroke, Water cooled, Turbo-charged, air after-cooled, |
| Fuel | Natural gas |
| Ignition type | Spark plug ignition |
| Intake gas pressure required: | 11.37~19.91psi(78.4～137.3kPa) |
| Bore: | 190 mm |
| Stoke: | 210 mm |
| Compression ratio | 8:1 |
| Heat consumption | £ 11386kJ/kWh |
| Oil consumption | £ 1.0 g/kWh |
| Lowest speed | 700 rpm |
| Exhaust temperature | £ 650 °C |
| Net mass | 5300 kg |
| Heavy overhauling | 18000 h |
MAIN SPECIFICATIONS OF ALTERNATOR
| Alternator model | Exciting model | Insulation class | Connection | Cooling | Structure type |
| 1FC6 456-6TA42 | Brushless | Class F | 3-pahse, 4-wire | Air cooled | AVR and reactive droop regulator assembled in alternator |
Optional Configurations
For more information about the 500KW Genset, please consult with your sales representative.Thanks.
