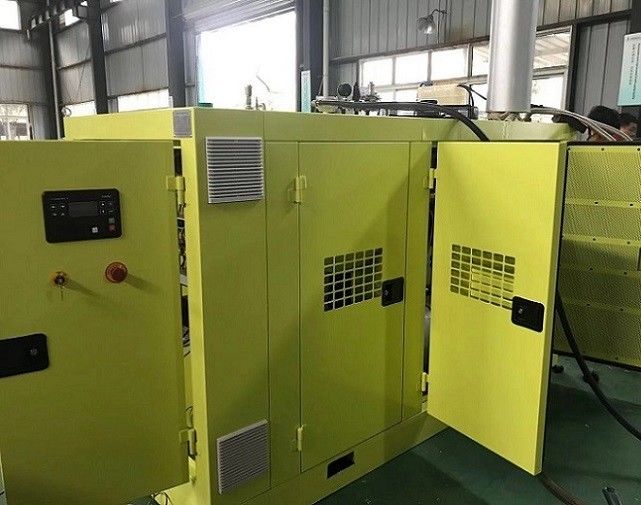

Three Phase CE Approved Cummins 6CTA 100kw Natural Gas Generator With CHP

Brand Name: SevenPower
Model Number: SP100N
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Chengdu,China
Certification:
CE
Engine:
Converted Cummins 6CTA
Engine Cooling:
Water Cooling
Alternator Cooling:
Air Cooling
Heat Recovery:
Both Engine And Exhaust
Cylinders:
6
RPM:
1500/50Hz
Alternator:
Meccalte, Leroy Somer Or Other Brands Available On Request
Soundproof Canopy:
With Or Without
Turbo:
With
Highlight:

Cummins 6CTA Natural Gas Power Generator

,

50Hz Natural Gas Power Generator

,

1500RPM Natural Gas Generator Set

Product Description

Three Phase CE Approved Cummins 6CTA 100kw Natural Gas Generator With CHP



  Characters

- Powered by converted Cummins engine 6CTA / water-cooled type / 6Cylinders

- ComAp controller

- Recover heat from both engine and exhaust

- Suitable for 24hours continuous running

- Isolated island operation or synchronize to grid

- Multiple units in parallel

- With or without soundproof canopy

- CE approved

- 1 year gurantee

- Integrated control cabinet

- Safe gas train

- Advanced gas engine control system, ignition system, speed control system, air/fuel ratio control system

- All necessary engine protections, oil pressure, water temperature, over current, over voltage, overload, engine speed, frequency protection, battery voltage

- Easy control system, all information easily read from the controller screen, power output,voltage,current,power factor, engine speed,oil pressure,coolant temperature,battery voltage,run hours,start numbers,alarms,historical records



Main Characters

  Model SP100N
fuel — Natural Gas
marks — Synchro Genset
electrical output(KWe) kVA/kWe Continuous Power
125/100
frequency Hz 50
voltage V 400/230
gas inlet pressure kPa 3-5
dimension (soundproof type) mm*mm*mm 3487*1289*1620
net weight kg 2200
NG consumption m3/kW.h 0.296
ignition system — Impco
speed governor — Woodward
mixer — Venturi type
gas filter — Madas
zero regulator — Kromschroeder
solenoid valve — Kromschroeder
gas pressure gauge — Dungs
Lambda auto control — With
Emissions — Available on request with extral cost
MCB — ABB
GCB — ABB
Controller   ComAp
Engine model — SP-6CTA
Engine type — 6 cylinders,4stroke,water-coolled
RPM — 1500
Compression Ratio — 10.5
Displacement — 8.3L
Oil capacity — 19L
Charging voltage — 24V(DC)
Charging current — 5A(DC)
Starting system — Electic-start
Alternator model — Meccalte
phase — 3 phase 4 wires
insulation system — class H
protection — IP23
Cooling Type — air cooled

For more information about our products, please feel free to contact with our sales team.

Three Phase CE Approved Cummins 6CTA 100kw Natural Gas Generator With CHP 0

Our Packing

Three Phase CE Approved Cummins 6CTA 100kw Natural Gas Generator With CHP 1

Our Hannover Exhibition

Three Phase CE Approved Cummins 6CTA 100kw Natural Gas Generator With CHP 2

Our Showroom In Germany

Three Phase CE Approved Cummins 6CTA 100kw Natural Gas Generator With CHP 3



Our Customers' Visiting

Three Phase CE Approved Cummins 6CTA 100kw Natural Gas Generator With CHP 4
