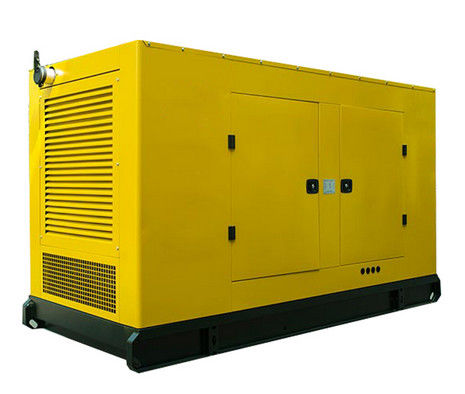

Water Cooled 20KW Natural Gas Micro Cogeneration Systems BHKW

Brand Name:	SevenPower
Model Number:	SP20N
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Chengdu,China

Certification:

Fuel:

Natural Gas

Frequency:

Electrical Output:

Color:

White Or Black, Other Colors Please Consult With The Sales

Soundproof Canopy:

Emissions:

Customised, Available On Request

Highlight:

20KW Micro Cogeneration Systems

Water Cooled Micro Cogeneration Systems

BHKW Micro Chp Unit

Product Description

Water Cooled 20KW Micro Cogeneration Systems

SevenPower CHP applications are where there is a demand for both electricity and hot water or heating.

● Houses ● Apartment Buildings ● Office blocks
● Commercial Buildings ● Spas ● Hotels
● Bakeries ● Breweries ● Schools
● Gyms ● Dairies ● Leisure Centers
● Sauna ● Hospitals ● Swimming Pools
● Zoos ● Stables ● Inn

20KW CHP Main Specifications

	Model	SP20N
	Model	SP20N
fuel	—	Natural Gas
marks	—	Synchro CHP
electrical output(KWe)	kVA/kWe	Continuous Power
electrical output(KWe)	kVA/kWe	25/20
thermal output(KWt)	kWt	41.5
electrical efficiency	%	28.41%
thermal efficiency	%	58.94%
overall efficiency	%	87.35%
frequency	Hz	50
voltage	V	400/230
gas inlet pressure	kPa	3-5
dimension (soundproof type)	mmmmmm	18007801020
net weight	kgs	700
NG consumption	m³/kW.h	0.357
standard type-db(A)@7m	—	58
Certificate	—	CE
water-water heat exchanger	—	SWEP
water-exhaust heat exchanger	—	designed by our own factory/made of full stainless steel
ignition system	—	Impco
speed governor	—	Woodward
mixer	—	Venturi type
gas filter	—	Madas
zero regulator	—	Maxitrol
solenoid valve	—	JL
gas pressure gauge	—	Dungs
Lambda auto control	—	Available on request with extral cost
catalyst converter	—	Available on request with extral cost
MCB	—	ABB
GCB	—	ABB
		ComAp IC
Engine model	—	SP-3RZ
Engine type	—	4 cylinders,4stroke,16valves,water-coolled
RPM	—	1500
Compression Ratio	—	10.5
Displacement	—	2.7L
Oil capacity	—	5.5L
Charging voltage	—	12V(DC)
Charging current	—	6A(DC)
Starting system	—	Electic-start
model	—	Meccalte
phase	—	3 phase 4 wires
insulation system	—	class H
protection	—	IP23
Cooling Type	—	air cooled

Warm note:

1.Gas source: biogas, methane(CH4) concentration ≥50%.
2.Natural gas engine special lubrication oil is needed.
3. Customized requirement for above is available upon request.
4. Supplier is responsible for quality failure parts in one year or 2000hrs, without any other incidental expenses. If need to extend warrenty to 5000hrs, additional cost is needed.

Micro CHP On Site Picture
Water Cooled 20KW Natural Gas Micro Cogeneration Systems BHKW 0
