EU CE Certification Cummins Natural Gas Generator Water Cooled 100kw With CHP

Brand Name:	SevenPower
Model Number:	SP100N
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Chengdu,China

Certification:

Engine:

Converted Cummins 6CTA

Engine Cooling:

Water Cooling

Cylinders:

RPM:

1500/50Hz

Alternator:

Meccalte, Leroy Somer Or Other Brands Available On Request

Alternator Cooling:

Air Cooling

Heat Recovery:

Engine Jacket Water And Exhaust

Soundproof Canopy:

With Or Without

Highlight:

Cummins Natural Gas Generator

100kw Natural Gas Generator

Natural Gas Generator With CHP

Product Description

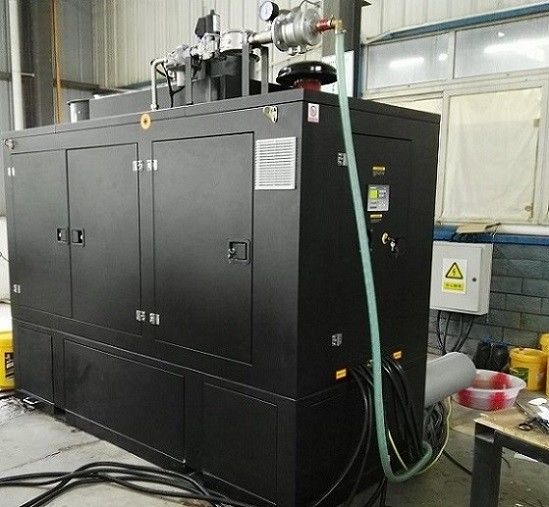

EU CE Certification Water Cooled 100kw Cummins Natural Gas Generator With CHP

Why choose our CHP?

- With CE certification.

- Comprehensive heat insulation to minimize heat loss and with high overall efficiency

- CHP inner pipelines are made of full stainless steel material.

- Maximum lower the noise level ensure the CHP is available to run in office building and residence site.

- Fully open design, maintenance friendly thanks to easy access.

- Environmentally friendly design.

- Long time Rearch & Design and testing ensure high reliability.

- With more than 15years experience in CHP.

- Distributors in Europe for better after-service.

Main Characters

- Water-cooled 4-cylinders engine suitable for 24hours continuous running and low speed lower noise level.

- Catalyst converter and lambda auto control for different emissions level requirements in different area and country.

- Meccalte alternator

- ComAp controller

- Recover heat from engine jacket water and exhaust

- Sevenpower exhaust heat exchanger made of full stainless steel material which is with longer service life

Item		Model	SP110N
Item		Model	SP110N
	fuel	—	Natural Gas
	marks	—	Synchro CHP
CHP	electrical output(KWe)	kVA/kWe	Continuous Power
	electrical output(KWe)	kVA/kWe	125/100
	thermal output(KWe)	kWt	140
	electrical efficiency	%	30.8%
	thermal efficiency	%	52.7%
	overall efficiency	%	83.5%
	frequency	Hz	50
	voltage	V	400/230
	gas inlet pressure	kPa	3-5
	dimension (soundproof type)	mmmmmm	260015501650
	net weight	kg	2700
	NG consumption	m3/kW.h	0.296
	db(A)@7m	—	58
	Certificate	—	CE
	water-water heat exchanger	—	SWEP
	water-exhaust heat exchanger	—	designed by our own factory/made of full stainless steel
	ignition system	—	Impco
	speed governor	—	Woodward
	mixer	—	Venturi type
	gas filter	—	Madas
	zero regulator	—	Kromschroeder
	solenoid valve	—	Kromschroeder
	gas pressure gauge	—	Dungs
	Lambda auto control	—	Available on request with extral cost
	catalyst converter	—	Available on request with extral cost
	MCB	—	ABB
	GCB	—	ABB
Controller			ComAp IC
Engine	Engine model	—	SP-6CTA
	Engine type	—	6 cylinders,4stroke,water-coolled
	RPM	—	1500
	Compression Ratio	—	10.5
	Displacement	—	8.3L
	Oil capacity	—	19L
	Charging voltage	—	24V(DC)
	Charging current	—	5A(DC)
	Starting system	—	Electic-start
Alternator	model	—	Meccalte
	phase	—	3 phase 4 wires
	insulation system	—	class H
	protection	—	IP23
	Cooling Type	—	air cooled

EU CE Certification Cummins Natural Gas Generator Water Cooled 100kw With CHP 0

Our Packing

Our Hannover Exhibition

EU CE Certification Cummins Natural Gas Generator Water Cooled 100kw With CHP 2

Our Showroom In Germany

EU CE Certification Cummins Natural Gas Generator Water Cooled 100kw With CHP 3

Our Customers' Visiting

EU CE Certification Cummins Natural Gas Generator Water Cooled 100kw With CHP 4

For more information about our products, please feel free to contact with our sales team.
