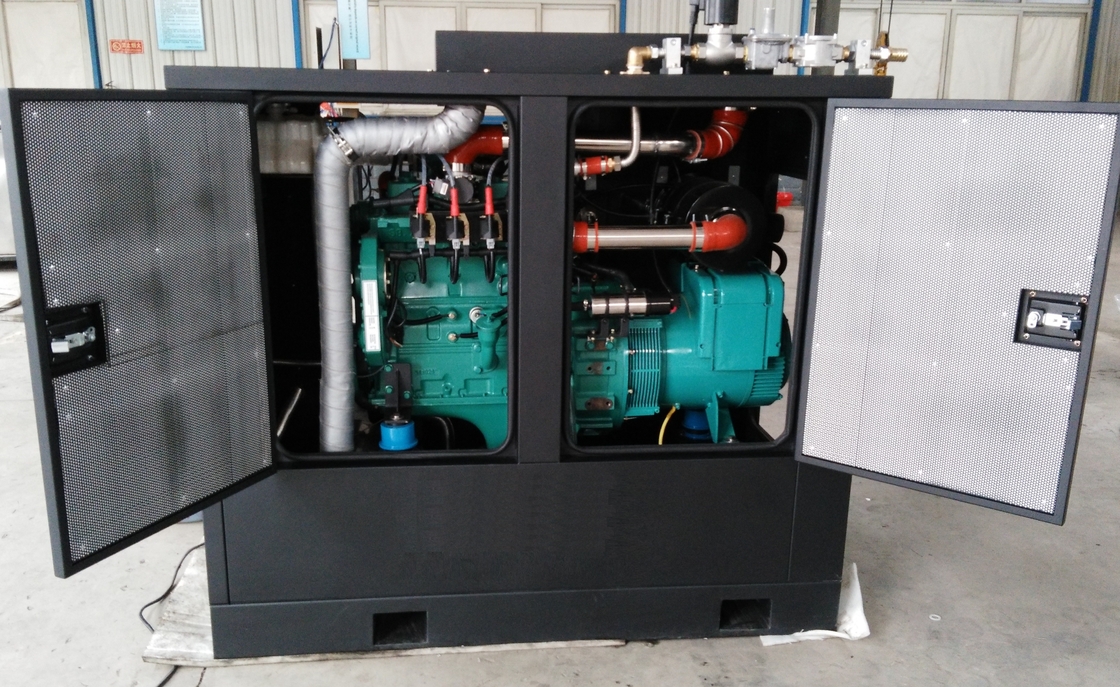

Lower Noise Natural Gas CHP BHKW 35KW CE Certified With Higher Overall Efficiency

Brand Name:	SevenPower
Model Number:	SP35N
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Chengdu,China

Certification:

Frequency:

50Hz, 60Hz Is Available On Request

Electrical Output:

35KW

Color:

Black, Other Colors Is Available On Request

Soundproof Canopy:

With Or Without

Fuel:

Natural Gas,Biogas Or LPG Is Available On Request

Emissions:

Available On Request

Power Factor:

0.8

Voltage:

400/230V, Other Voltage Is Available On Request

Highlight:

Natural Gas CHP BHKW

Low Noise Natural Gas CHP

35KW Natural Gas Cogeneration

Product Description

Natural Gas CHP 35KW CE Certified With Higher Overall Efficiency Lower Noise

Different Configurations For Different Application
-Standalone off-grid operation or Synchronize to grid
-With or Without ATS
-With or Without soundproof canopy
-With or Without catalyst converter to reach emissions limit
-Single unit or several units in parallel
-Remote control

Main Specifications
- The monitor and display on the voltage, current, frequency, active power, apparent power, power factor of the generated electricity / grid electricity.
- The monitor and display on the CHP water temperature, oil pressure, rotational speed, battery voltage, running hours, accumulative total power and number of starts.
- Protection alarm and fault automatic storage on high water temperature, low oil pressure, double speeding, over current, over voltage, over frequency and phase failure etc.

	Model	SP35N
	Model	SP35N
fuel	—	Natural Gas
marks	—	Synchro CHP
electrical output(KWe)	kVA/kWe	Continuous Power
electrical output(KWe)	kVA/kWe	44/35
thermal output(KWt)	kWt	56
electrical efficiency	%	32.7%
thermal efficiency	%	51.4%
overall efficiency	%	84.1%
frequency	Hz	50
voltage	V	400/230
gas inlet pressure	kPa	3-5
dimension (soundproof type)	mmmmmm	210012001500
net weight	kgs	1100
NG consumption	m³/kW.h	0.31
standard type-db(A)@7m	—	58
Certificate	—	CE
water-water heat exchanger	—	SWEP
water-exhaust heat exchanger	—	designed by our own factory/made of full stainless steel
ignition system	—	Impco
speed governor	—	Woodward
mixer	—	Venturi type
gas filter	—	Madas
zero regulator	—	Kromschroeder
solenoid valve	—	Kromschroeder
gas pressure gauge	—	Dungs
Lambda auto control	—	Available on request with extral cost
catalyst converter	—	Available on request with extral cost
MCB	—	ABB
GCB	—	ABB
Controller		ComAp
Engine model	—	SP-4BTA
Engine type	—	4 cylinders,4stroke,water-coolled
RPM	—	1500
Compression Ratio	—	10.5
Displacement	—	3.9L
Oil capacity	—	9.5L
Charging voltage	—	24V(DC)
Charging current	—	5A(DC)
Starting system	—	Electic-start
Alternator model	—	Meccalte
phase	—	3 phase 4 wires
insulation system	—	class H
protection	—	IP23
Cooling Type	—	air cooled

Scope Of Application
Lower Noise Natural Gas CHP BHKW 35KW CE Certified With Higher Overall Efficiency 0

For more information about the 35kw CHP, please consult with your sales representative.Thanks.
