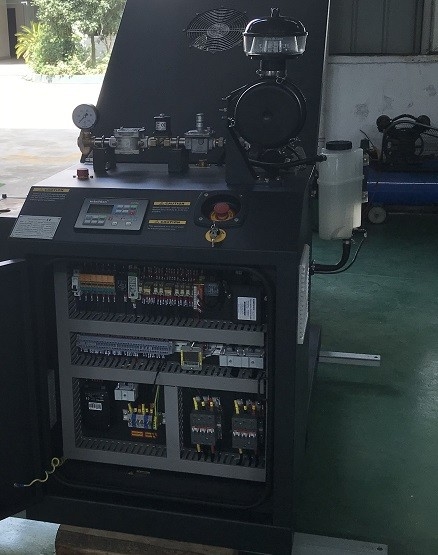

Water Cooled Engine LPG CHP Cogenerator 12KW 15KW Micro LPG Cogeneration

Brand Name:	SevenPower
Model Number:	SP12L SP15L
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Chengdu,China

Certification:

Fuel:

Liquefied Petroleum Gas

Pressure:

2-5kpa

Frequency:

50Hz, 60Hz Is Available On Request

Engine Cooling:

Water Cooled

Cylinders:

Speed:

Exhaust Heat Exchanger:

Made Of Full Stainless Steel

Water-Water Exchanger:

Highlight:

Water Cooled Engine LPG CHP

LPG CHP 12KW

Micro LPG Cogeneration CHP

Product Description

Water Cooled Engine LPG Generator Cogenerator Continuous 12KW 15KW Micro LPG Cogeneration Long Service Life

Why choose SevenPower CHP?
- Fully open design, much easier for maintenance
- Super silent, low noise level <60dB(A)@1meter
- Water cooled engine,Suitable for 24hours continuous running
- Exhaust heat exchanger made of full stainless steel
- Higher overall efficiency
- Stable performance
- Multiple installations in Europe which approved the quality
LPG Micro Generator/CHP Selections
50Hz 60Hz
- 8kw -10kw
- 10kw -12kw
- 12kw -15kw
- 15kw -18kw
- 20kw -22kw

	Model	SP12L
	Model	SP12L
fuel	—	LPG
marks	—	Synchro CHP
electrical output(KWe)	kVA/kWe	Continuous Power
electrical output(KWe)	kVA/kWe	15/12
thermal output(Kwt)	—	27
electrical efficiency	—	26.6%
thermal efficiency	—	60.0%
overall efficiency	—	86.6%
frequency	Hz	50
voltage	V	400/230
gas inlet pressure	kPa	3-5
Water Flow	m³/h	2
dimension (soundproof type)	mmmmmm	18009601170(without doors 780mm only)
net weight	kgs	650
LPG consumption	kgs/kW.h	0.3
Certificate	—	CE
water-water heat exchanger		SWEP
water-exhaust heat exchanger		Made of full stainless steel
ignition system	—	Impco
speed governor	—	Woodward
gas filter	—	Impco
zero regulator	—	Impco
soft start	—	ABB
switch	—	ABB
lambda control	—	Available on request
catalyst converter	—	Available on request
Controller		ComAp
Engine model	—	SP-3Y
Engine type	—	4 cylinders,4stroke,water-coolled
RPM	—	1500
Compression Ratio	—	8.8:1
Displacement	—	2L
Oil capacity	—	4.2L
Charging voltage	—	12V(DC)
Charging current	—	6A(DC)
Starting system	—	Electic-start
Alternator model	—	Meccalte
phase	—	3 phase
insulation system	—	class H
protection	—	IP23
Cooling Type	—	air cooled

For more information about the CHP, please consult with your sales representative.Thanks.
