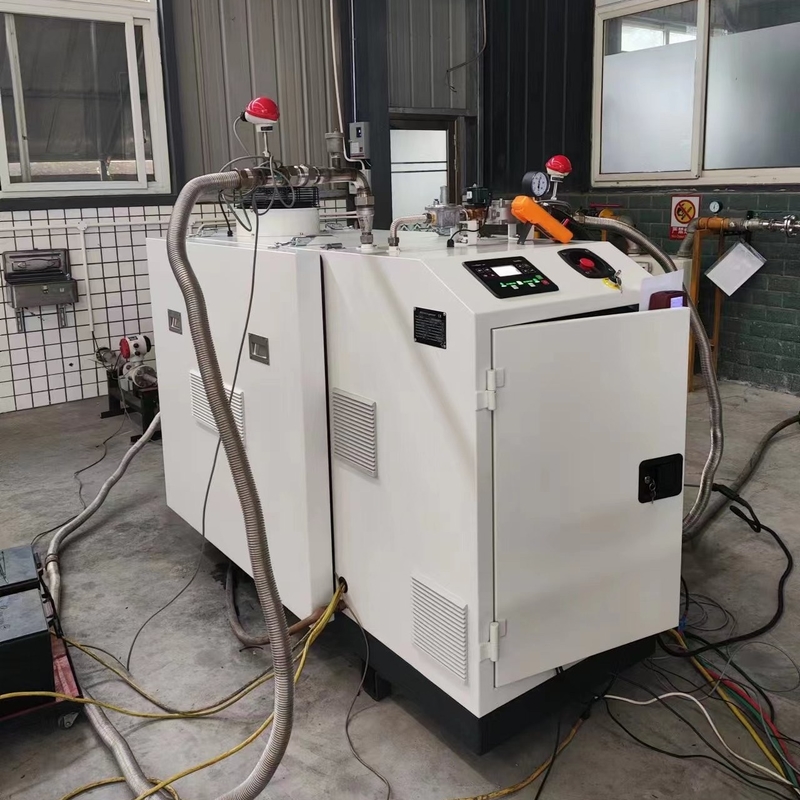

Micro LPG Generator Set Cogenerator 20KW 25KVA CHP Continuous 24hours Running

Brand Name:	SevenPower
Model Number:	SP20L
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Chengdu,China

Certification:

Fuel:

Liquefied Petroleum Gas

Pressure:

2-5kpa

Frequency:

50Hz, 60Hz Is Available On Request

Engine Cooling:

Water Cooled

Cylinders:

Speed:

Exhaust Heat Exchanger:

Made Of Full Stainless Steel

Water-Water Exchanger:

Highlight:

Micro LPG Generator Set

25KVA LPG Generator Set

LPG Cogenerator 20KW

Product Description

LPG Generator Set Cogenerator 20KW 25KVA Micro Generator CHP Continuous 24hours Running

Multiple units been installed around the world

Due to the energy crisis, there's big market for LPG CHP.LPG combustion almost no carbide and dust emissions. LPG application is more widely than other gases in the global , and the supply is adequate, it’s easy for transportation and preservation, convenient energy supply to remote areas, to provide more stable fuel source for LPG CHP

SevenPower CHPs have been sold in Europe for about 10years, our rich experience in CHP ensure you the good quality.

Why SevenPower CHPs?

- Water cooled engine, suitable for 24hours continous running, stable performance
- Exhaust heat exchanger made of full stainless steel
- CE approved.
- Environmentally friendly design.
- Long time R&D and testing ensure high reliability.
- Maximum lower the noise level.
- Insulation reduce the heat loss
- Maintenance friendly thanks to easy access.

LPG Micro Generator/CHP Selections
50Hz 60Hz
-8kw -10kw
-20kw -22kw

	Model	SP20L
	Model	SP20L
fuel	—	LPG
marks	—	Synchro CHP
electrical output(KWe)	kVA/kWe	Continuous Power
electrical output(KWe)	kVA/kWe	25/20
thermal output(Kwt)	—	42
electrical efficiency	—	28.3%
thermal efficiency	—	59.4%
overall efficiency	—	87.7%
frequency	Hz	50
voltage	V	400/230
gas inlet pressure	kPa	3-5
Water Flow	m³/h	2
dimension (soundproof type)	mmmmmm	18009601170(without doors 780mm only)
net weight	kgs	580
LPG consumption	kgs/kW.h	0.28
Certificate	—	CE
water-water heat exchanger		SWEP
water-exhaust heat exchanger		Made of full stainless steel
ignition system	—	Impco
speed governor	—	Woodward
gas filter	—	Impco
zero regulator	—	Impco
soft start	—	ABB
switch	—	ABB
lambda control	—	Available on request
catalyst converter	—	Available on request
Controller		ComAp
Engine model	—	SP-4JB1
Engine type	—	4 cylinders,4stroke,water-coolled
RPM	—	1500
Compression Ratio	—	9.5
Displacement	—	2.7L
Oil capacity	—	5.5L
Charging voltage	—	12V(DC)
Charging current	—	6A(DC)
Starting system	—	Electic-start
Alternator model	—	Meccalte
phase	—	3 phase
insulation system	—	class H
protection	—	IP23
Cooling Type	—	air cooled

For more information about the CHP, please consult with your sales representative.Thanks.
