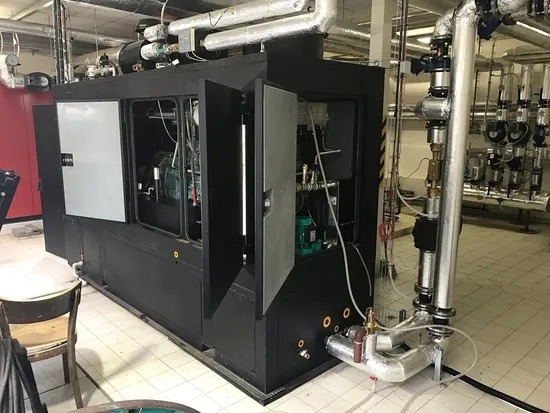

Name: 100kW Natural Gas CHP Unit with 84.4% Efficiency SP100N Model
Brand: Chengdu Sevenpower Generating Equipment Co., Ltd.
Price: 34000 USD
Availability: InStock

MOQ:	1
Price:	34000

Detail Information

Product Description

Detail Information

Certification:

Model NO.:

SP100N

Output Type:

AC Three Phase

Gas Source:

Natural Gas

Power Range:

50-200kW

Frequency:

50Hz, 60Hz

Voltage:

400/230V

Phase:

3 Phases

Engine Cooling:

Water Cooled

Engine Speed:

1500/1800 RPM

Alternator Cooling:

Air Cooled

Continuous Power:

100kw

Thermal Power:

168kw

Electrical Efficiency:

31.5%

Thermal Efficiency:

52.9%

Overall Efficiency:

84.4%

Highlight:

100kW natural gas CHP unit

high efficiency CHP unit

SP100N natural gas CHP

Product Description

50Hz 60Hz Silent Open Type Natural Gas Combined Heat and Power CHP Unit Generator 100kw 125kVA

Product Specifications

Attribute	Value
Model NO.	SP100N
Output Type	AC Three Phase
Gas Source	Natural Gas
Power	50-200kW
Standard	Standard
Fuel Type	Natural Gas, Biogas or LPG Is Available on Request
Frequency	50Hz, 60Hz Is Available on Request
Voltage	400/230V, Other Voltage Is Available on Request
Phase	3 Phases
Engine Cooling	Water Cooled
Engine Speed	Rpm1500/50Hz, Rpm1800/60Hz
Alternator Cooling	Air Cooled
Heat Recovery Sources	Engine+Engine Jacket+Exhaust
Continuous Power	100kw
Thermal Power	168kw
Electrical Efficiency	31.5%
Thermal Efficiency	52.9%
Overall Efficiency	84.4%
Transport Package	Wrapping
Trademark	WeTeam
Origin	China
HS Code	8502200000
Production Capacity	50pieces/Month

Key Features

Powered by converted C ummings engine
Integrated control cabinet, easy for installations
Safe gas train
Advanced gas engine control system, ignition system, speed control system, air/fuel ratio control system
Auto Lambda control, easy start
3 steps heat recovery, high overall efficiency
Low exhaust emissions (OPTIONAL)

Technical Specifications

Model Name	SP100N
Frequency (Hz)	50
Voltage	400/230
Fuel Type	Natural gas
Continuous Power(KWe)	100kw
Thermal Output	168kw
Electrical efficiency	31.5%
Thermal efficiency	52.9%
Overall efficiency	84.4%
Engine	Converted C UMMINGS
Alternator	Kwise, other brands is available on request
Controller	ComAp
Canopy	With or without
Genset Gas Inlet Pressure	3-5kpa
Gas consumption@100% load	0.322m3/kW.h
