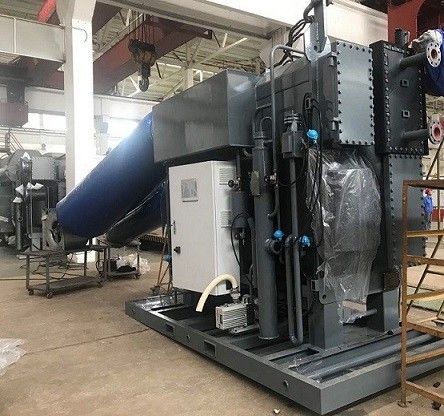

200KW Natural Gas Combined Cooling Heating Power
Name | Combined Cooling Heating And Power | Feature | High Efficiency |
---|---|---|---|
Certification | CE | Electricity | 200KW |
Cooling | 260KW | Thermal | 300KW |
High Light | 200KW Combined Cooling Heating Power,Natural Gas Combined Cooling Heating Power,CE cchp combined cooling heating power |
200KW Natural Gas CCHP , Combined Cooling And Heating And Power , Cooling and Heating and Electricity
Optional
- 1) Exhaust LiBr absorption chiller
- 2) Hot water LiBr absorption chiller
Heat input: hot water/heat conducting oil ( 65 deg C - 200 deg C )
Outstanding features:
-
Mechanical and electric-controlled anti-freezing system: multiple anti-freezing measures
-
Hybrid automatic purge system with multiple ejectors and fall-head structure: ensuring fast vacuum pumping and maintaining high vacuum.
-
Hybrid automatic anticrystallization system combining level difference dilution and crystalmelting: preventing crystallization
-
Mixed-flow circulation technology: a unique refrigeration process flow
-
Economizer: increasing output energy
-
Mechanical and electric-controlled anti-freezing system: multiple anti-freezing measures
-
Fine flash vaporization device: recycling waste heat of refrigerant
-
Self-adaptive cooling storage device: improving partial-load performance and shortening start/stop time
-
Plate heat exchanger: over 10% energy saving
-
Inhibitor lithium molybdate: environmental-friendly
-
Parameter management system
-
Fault management system
Power | kW | 30 | 50 | 75 | 100 | 150 | 200 | 250 | 350 | 400 | 500 | |
Cooling | kW | 39 | 65 | 100 | 130 | 195 | 260 | 325 | 490 | 580 | 680 | |
Thermal | kW | 45 | 75 | 120 | 150 | 225 | 300 | 375 | 525 | 620 | 730 | |
Size | Length | mm | 2100 | 2400 | 3100 | 3100 | 3500 | 4000 | 4500 | 5000 | 6500 | 7000 |
Width | mm | 1500 | 1700 | 1700 | 2000 | 2000 | 2000 | 2000 | 4500 | 5000 | 5500 | |
Height | mm | 2100 | 2300 | 2220 | 2550 | 2600 | 2600 | 2600 | 5000 | 6000 | 6500 | |
Weight | kgs | 1950 | 3600 | 5100 | 6800 | 8500 | 9100 | 11000 | 25000 | 30000 | 45000 |
For more information about the CCHP, please consult with your sales representative.Thanks.
